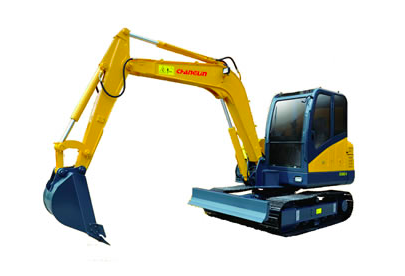

ZG3065-9B Changlin excavator specs & dimensions (2017 - 2026)

Changlin ZG3065-9B is a mini excavator manufactured since 2017, with a weight of 5.8 tons. It features a track width of 400 mm, a …

Changlin ZG3065-9B is a mini excavator manufactured since 2017, with a weight of 5.8 tons. It features a track width of 400 mm, a transport length of 5.95 meters, a transport width of 1.92 meters, and a transport height of 2.4 meters. The machine has a tear-out force of 58.5 kN, a dredging depth of 3.82 meters, and a maximum horizontal reach of 6.15 meters. The bucket capacity is 0.22 cubic meters.

Mini Excavators Changlin ZG3065-9B

Technical specs - ZG3065-9B Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.8 t
Transport length
5.95 m
Transport width
1.92 m
Transport height
2.4 m
Bucket capacity
0.22 m³
Track width
400 mm
Max. Reach horizontal
6.15 m
Dredging depth
3.82 m
Tear-out force
58.5 kN
Model series
ZG
Engine manuf.
Yanmar
Engine type
4TNV98-SYU
Engine power
43.4 kW

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Changlin ZG3065-9B FAQ

When was the Changlin ZG3065-9B manufactured?

The Changlin ZG3065-9B was first produced in 2017.

How much does the Changlin ZG3065-9B mini excavator weigh?

The Changlin ZG3065-9B mini excavator weighs 5.8 tons.

What are the transport dimensions of the Changlin ZG3065-9B mini excavator?

The Changlin ZG3065-9B has a transport length of 5.95 meters, a transport width of 1.92 meters, and a transport height of 2.4 meters.

What is the track width of the Changlin ZG3065-9B mini excavator's undercarriage?

The Changlin ZG3065-9B mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Changlin ZG3065-9B mini excavator?

The Changlin ZG3065-9B mini excavator has a dredging depth of 3.82 meters and a maximum horizontal reach of 6.15 meters.

What is the tear-out force of the Changlin ZG3065-9B mini excavator?

The Changlin ZG3065-9B mini excavator has a tear-out force of 58.5 kN.

What is the bucket capacity of the Changlin ZG3065-9B mini excavator?

The bucket capacity of the Changlin ZG3065-9B mini excavator is 0.22 cubic meters.
