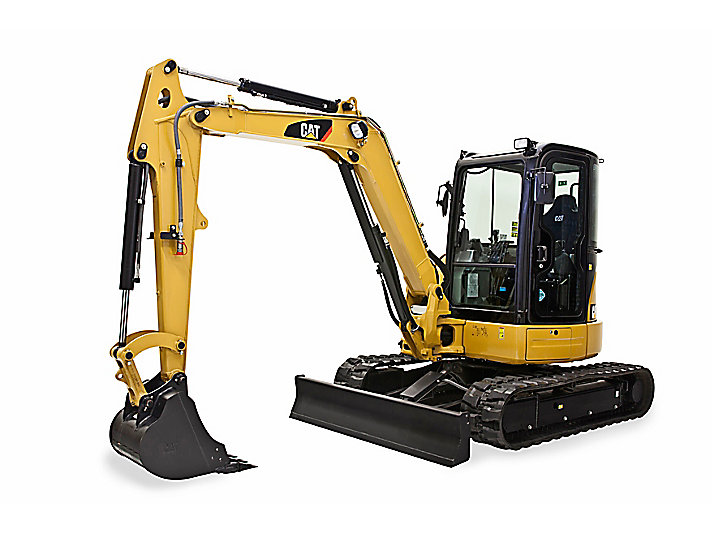

305E2 CR Caterpillar excavator specs & dimensions (2014 - 2020)

Caterpillar 305E2 CR is a Mini Excavator manufactured from 2014 to 2020, with a weight of 5.14 tons. It features a track width of …

Caterpillar 305E2 CR is a Mini Excavator manufactured from 2014 to 2020, with a weight of 5.14 tons. It features a track width of 400 mm, a transport length of 5.18 meters, a transport width of 1.98 meters, and a transport height of 2.55 meters. The machine has a tear-out force of 44.7 kN, a dredging depth of 3.28 meters, and a maximum horizontal reach of 5.33 meters. It is equipped with a blade and rubber tracks.

Mini Excavators Caterpillar 305E2 CR

Technical specs - 305E2 CR Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.14 t
Transport length
5.18 m
Transport width
1.98 m
Transport height
2.55 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
5.33 m
Dredging depth
3.28 m
Tear-out force
44.7 kN
Model series
CR
Engine manuf.
Caterpillar
Engine type
C2.4
Engine power
31 kW
Displacement
2.4 l
Cylinder bore x stroke
87x102 mm
Emission level
Tier 4 f

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 305E2 CR FAQ

When was the Caterpillar 305E2 CR manufactured?

The Caterpillar 305E2 CR was manufactured from 2014 to 2020.

How much does the Caterpillar 305E2 CR weigh?

The Caterpillar 305E2 CR weighs 5.14 tons.

What are the transport dimensions of the Caterpillar 305E2 CR mini excavator?

The Caterpillar 305E2 CR has a transport length of 5.18 meters, a transport width of 1.98 meters, and a transport height of 2.55 meters.

What is the track width of the Caterpillar 305E2 CR's undercarriage?

The Caterpillar 305E2 CR has a track width of 400 mm.

What are the excavation performance specifications of the Caterpillar 305E2 CR mini excavator?

The Caterpillar 305E2 CR mini excavator has a dredging depth of 3.28 meters and a maximum horizontal reach of 5.33 meters.

What is the tear-out force of the Caterpillar 305E2 CR mini excavator?

The Caterpillar 305E2 CR mini excavator has a tear-out force of 44.7 kN.

What operator safety features does the Caterpillar 305E2 CR have?

The Caterpillar 305E2 CR has a cabin for driver protection.
