301.5 Caterpillar excavator specs & dimensions (1998 - 2005)

Model rating
8,50 / 10

Caterpillar 301.5 is a mini excavator manufactured from 1998 to 2005, with a weight of 1.67 tons. It features a track width of 230…

Caterpillar 301.5 is a mini excavator manufactured from 1998 to 2005, with a weight of 1.67 tons. It features a track width of 230 mm, a transport length of 3.69 meters, a transport width of 0.98 meters, and a transport height of 2.19 meters. The bucket capacity is a minimum of 0.03 cubic meters, and it includes special equipment such as a blade.

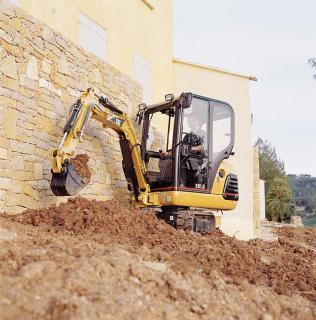

Mini Excavators Caterpillar 301.5

Technical specs - 301.5 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.67 t
Transport length
3.69 m
Transport width
0.98 m
Transport height
2.19 m
Bucket capacity min.
0.03 m³
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.32 m
Dredging depth
2.13 m
Tear-out force
8.8 kN
Engine manuf.
Caterpillar
Engine type
3003 NA
Engine power
13 kW
Displacement
0.95 l
Revolutions at max torque
2300 rpm

More technical details, like: bucket capacity, bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 301.5 FAQ

When was the Caterpillar 301.5 manufactured?

The Caterpillar 301.5 was manufactured from 1998 to 2005.

How much does the Caterpillar 301.5 mini excavator weigh?

The Caterpillar 301.5 mini excavator weighs 1.67 tons.

What are the transport dimensions of the Caterpillar 301.5 mini excavator?

The Caterpillar 301.5 mini excavator has a transport length of 3.69 meters, a transport width of 0.98 meters, and a transport height of 2.19 meters.

What is the track width of the Caterpillar 301.5 mini excavator?

The Caterpillar 301.5 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Caterpillar 301.5 mini excavator?

The Caterpillar 301.5 mini excavator has a dredging depth of 2.13 meters and a maximum horizontal reach of 3.32 meters.

What is the tear-out force of the Caterpillar 301.5 mini excavator?

The Caterpillar 301.5 has a tear-out force of 8.8 kN.

What is the minimum bucket capacity of the Caterpillar 301.5 mini excavator?

The minimum bucket capacity of the Caterpillar 301.5 mini excavator is 0.03 cubic meters.

What operator safety features does the Caterpillar 301.5 have?

The Caterpillar 301.5 has driver protection in the form of a cabin.

How much is a Caterpillar 301.5 Mini excavator (1998u20132005) worth?

The residual value of the Caterpillar 301.5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
