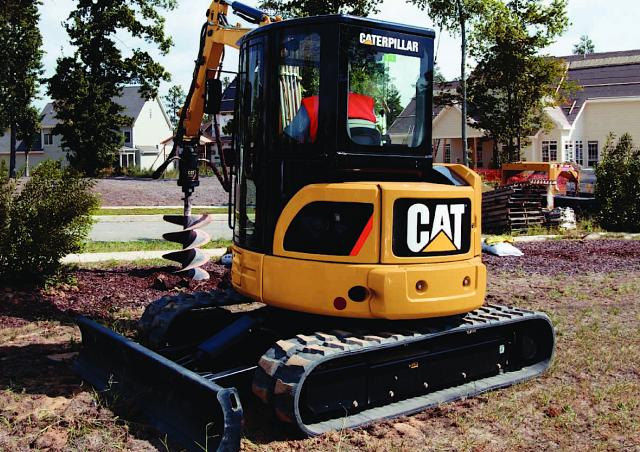

305C Caterpillar excavator specs & dimensions (2006 - 2010)

Automatic Two Speed Function.
Improves machine maneuverability around the job site. Increased productivity by balancing high speed travel requirements with controllability.
High Level of Standard Comfort
Features. Recumbent seat, powerpoint, adjustable wrist rests and a cup holder are standard features on the Cat C CR machines.
Wide Range of Work Tools. These tools
are designed to get the best out of the machine and deliver excellent value through high productivity and long service life. Tools include: Digging buckets, Ditch cleaning buckets, Angling digging shovels, hydraulic hammers, Augers
Mechanical Quick Coupler. The Cat
Quick Coupler makes tool changes quick and easy. It maximizes performance as it is compatible with all common work tools. Work Tools versatility is further enhanced by the option of a second additional auxiliary supply.
Dozer Blade Float Function. The dozer
float allows easy ground leveling for landscaping and finishing applications, as well as more efficient job site cleaning. Stick options. A choice of standard or long sticks enables matching machine to application.
Load Sensing Hydraulics, High Traction Force and Auto 2-Speed Travel.
These features are standard on the Cat C Series CR machines and best suited to get the most out of the fishing blade installation.
Standard equipment may vary. Consult your Caterpillar dealer for details.
Additional counterweight 165 kg (364 lb) Adjustable wrist rest Alternator Automatic Engine Idle Automatic swing park brake Auxiliary hydraulic circuit valve controls, and 1 way Hammer piping to stick 2-way (Auger) Auxiliary hydraulic lines to stick auxiliary line Quick couplers Boom cylinder guard Cab mounted working light Canopy with FOPS ISO10262 (Stage 1) plus tip-over protection ISO12117 Coat hook and cup holder Control pattern changer Dial type Accelerator dozer blade with float function Floor mat Foot travel pedal Gauges or indicators for fuel level Engine coolant temperature, hour meter, engine oil pressure, air cleaner, alternator and glow plugs, service interval Hydraulic oil cooler Lockable storage box Low maintenance ram joints Maintenance free battery Rubber track Retractable seat belt Standard stick suspension seat, vinyl covered Thumb ready' sticks Travel alarm Two compartment drive

305C CR Mini Hydraulic Excavator Engine Rated utility power (ISO 9249) Weights Operating weight with canopy Operating weight with cab Mitsubishi S4Q2-T 5200 kg 11,465 lb 5320 kg 11,725 lb, weight with counterweight, rubber tracks, bucket and operator, full fuel and auxiliary lines. The weight varies depending on machine configuration.

access to: Engine oil check and fill, air filter, Vertically mounted engine oil filter, main tool valve, starter motor, auxiliary changes via valve, accumulator, fuel filter, hydraulic tank
Automatic Engine Idle. Automatically
lowers engine rpm when not in use to save fuel and less environmental noise/emissions.

S, O, SSM Oil Sampling Valve.
Alternator Allow easy sampling of hydraulic fluid for preventative maintenance.
Strong and Durable. The Cat hydraulic
Angle blade is designed to be strong and durable with a hardened steel wear edge and good protection against cylinders and hydraulic lines.

Good access to main check points and major components makes servicing and maintaining the 305C CR easier.
Front Linkage. Protected front articulation lines are routed over the boom and stick to reduce damage and downtime. End damping. The end cushioning on both boom and stick cylinders reduces shock load, increases component life and improves ground retention when loading in height. Liner Bearings. Line bearings in swing casting provide longer component life and reduced parts replacement costs.
