301.4C Caterpillar excavator specs & dimensions (2012 - 2026)

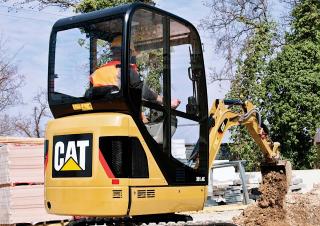

Caterpillar 301.4C is a mini excavator manufactured since 2012, with a weight of 1.38 tons. It has a transport length of 3.64 mete…

Caterpillar 301.4C is a mini excavator manufactured since 2012, with a weight of 1.38 tons. It has a transport length of 3.64 meters, a transport width of 0.99 meters, and a transport height of 2.27 meters. The bucket width is 0.98 meters.

Mini Excavators Caterpillar 301.4C

Technical specs - 301.4C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.38 t
Transport length
3.64 m
Transport width
0.99 m
Transport height
2.27 m
Bucket width
0.98 m
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
17.9 kW
Displacement
1.115 l
Revolutions at max torque
2500 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., track width, standard tyres, driver protection, max. reach horizontal, dredging depth, tear-out force, model series, dimension lxwxh, max. torque...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., track width, standard tyres, driver protection, max. reach horizontal, dredging depth, tear-out force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 301.4C FAQ

When was the Caterpillar 301.4C manufactured?

The Caterpillar 301.4C was first produced in 2012.

How much does the Caterpillar 301.4C weigh?

The Caterpillar 301.4C weighs 1.38 tons.

What are the transport dimensions of the Caterpillar 301.4C mini excavator?

The Caterpillar 301.4C has transport dimensions of 3.64 meters in length, 0.99 meters in width, and 2.27 meters in height.

What is the bucket width of the Caterpillar 301.4C mini excavator?

The Caterpillar 301.4C mini excavator has a bucket width of 0.98 meters.

How much is a Caterpillar 301.4C Mini excavator (2012u20132025) worth?

The residual value of the Caterpillar 301.4C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar 301.4C overview

Caterpillar 301.4C features overview

Work Tools
A range of work tools is available to take advantage of machine versatility. All tools are matched to the machine to optimize performance and deliver excellent value through productivity and long service life.

Engine / Driveline and transmission

Powerful Engine and Load Sensing Hydraulics
The 17th 9 kw (24. 3 hp) engine is matched with a load sensing hydraulic system to ensure excellent digging performance and smooth control.

Hydraulics

Auxiliary Hydraulics as Standard Fit
The machine is ready for use.' Hammer and two way lines complete with quick disconnect fittings are standard. Connections are located close to the tool to reduce hose lengths and eventual damage. Hoses are protected by the line through the boom.
Boom Cylinder Protection
The boom cylinder is mounted above the boom structure to increase machine durability and reduce failure potential.

Tyres / Tracks

Extending Undercarriage and Blade
An extendible undercarriage and fold-in dozer blade allow the machine to be configured for excellent working stability and optimum performance. Blade extensions simply rotate with maintained pins, locking out the potential of lost parts.

Dimensions and weight

1Height2276 mm7 ft 6 in
2Width990 mm3 ft 3 in
Transport Length (boom down)3645 mm12 ft 0 in
3Maximum Digging Depth2240 mm7 ft 4 in
4Maximum Vertical Digging Depth1640 mm5 ft 5 in
5Maximum Digging Height3390 mm11 ft 1 in
6Maximum Dumping Height2370 mm7 ft 9 in
7Maximum Digging Radius3700 mm12 ft 2 in
Maximum Reach on the Ground3650 mm12 ft 0 in
8Tail Swing Radius1075 mm3 ft 6 in
9Maximum Lift of Dozer Blade Above Ground211 mm8.3 in
10Maximum Digging Depth of Dozer Blade Below Ground264 mm10.4 in
11Track Length1460 mm4 ft 9 in
12Maximum Swing Angle of Boom System to the Right49°
13Maximum Swing Angle of Boom System to the Left73°

Other features

Operator Environment
The Cat 301.4C provides the operator with a large comfortable space to work. The ergonomic control layout, travel pedals and adjustable wrist rests have been designed to reduce operator fatigue and increase productivity. Layout is designed for easy cleaning; thus minimizing downtime between operations.
Customer Support
Supported through the Cat dealer and worldwide parts network, the product aims to minimize downtime and maximise customer profi tability.

Tables

Lift Point Radius2000 mm (78.7 in)3000 mm (118.1 in)Maximum
FrontSideFrontSideFrontSide
kglbkglbkglbkglbkglbkglb
Undercarriage Width990 mm (39 in)715*1576*"335739385*849*200441350*772*190419
1300 mm (51.2 in)715*1576*"4951091"385*849*300661350*772*275606
Engine ModelYanmar 3TNV76
Rated Net Power (ISO 9249)13.2 kW 17.7 hp
Gross Power17.9 kW 24.3 hp
Displacement1116 cm3 68.1 in3
Fuel Tank Capacity24 L6.3 gal
Hydraulic Tank Capacity20 L5.3 gal
