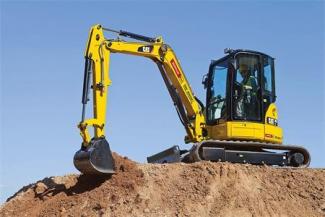

305E CR Caterpillar excavator specs & dimensions (2012 - 2017)

Caterpillar 305E CR is a mini excavator manufactured from 2012 to 2017, with a weight of 5.09 tons. It features a track width of 4…

Caterpillar 305E CR is a mini excavator manufactured from 2012 to 2017, with a weight of 5.09 tons. It features a track width of 400 mm, a transport length of 5.18 meters, a transport width of 1.98 meters, and a transport height of 2.55 meters. The bucket width is 0.3 meters with a bucket capacity of 0.06 cubic meters. Special equipment includes air conditioning and track adjustment.

Mini Excavators Caterpillar 305E CR

Technical specs - 305E CR Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.09 t
Transport length
5.18 m
Transport width
1.98 m
Transport height
2.55 m
Bucket capacity
0.06 m³
Bucket width
0.3 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
5.43 m
Dredging depth
3.28 m
Tear-out force
45.2 kN
Model series
CR
Engine manuf.
Caterpillar
Engine type
C2.4
Engine power
31 kW
Displacement
2.4 l
Cylinder bore x stroke
87x102 mm
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
No
Blade
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 305E CR FAQ

When was the Caterpillar 305E CR manufactured?

The Caterpillar 305E CR was manufactured from 2012 to 2017.

How much does the Caterpillar 305E CR weigh?

The Caterpillar 305E CR weighs 5.09 tons.

What are the transport dimensions of the Caterpillar 305E CR mini excavator?

The Caterpillar 305E CR has a transport length of 5.18 meters, a transport width of 1.98 meters, and a transport height of 2.55 meters.

What is the track width of the Caterpillar 305E CR mini excavator's undercarriage?

The Caterpillar 305E CR mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Caterpillar 305E CR mini excavator?

The Caterpillar 305E CR mini excavator has a dredging depth of 3.28 meters and a maximum horizontal reach of 5.43 meters.

What is the tear-out force of the Caterpillar 305E CR mini excavator?

The Caterpillar 305E CR mini excavator has a tear-out force of 45.2 kN.

What are the bucket specifications of the Caterpillar 305E CR mini excavator?

The Caterpillar 305E CR mini excavator has a bucket capacity of 0.06 cubic meters and a bucket width of 0.3 meters.

What operator safety and support features does the Caterpillar 305E CR have?

The Caterpillar 305E CR provides operator safety with a driver protection cabin.

How much is a Caterpillar 305E CR Mini excavator (2012u20132017) worth?

The residual value of the Caterpillar 305E CR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
