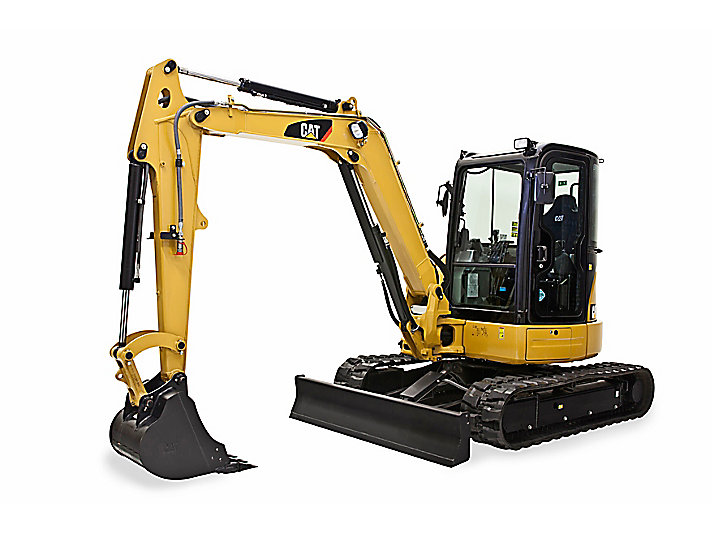

305.5E2 CR Caterpillar excavator specs & dimensions (2014 - 2020)
.jpg)
.jpg)
Technical specs - 305.5E2 CR Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 5.38 t
- Transport length
- 5.33 m
- Transport width
- 1.98 m
- Transport height
- 2.55 m
- Track width
- 400 mm
- Driver protection
- Kb
- Max. Reach horizontal
- 5.63 m
- Dredging depth
- 3.47 m
- Tear-out force
- 50.9 kN
- Model series
- CR
- Engine manuf.
- Caterpillar
- Engine type
- C2.4
- Engine power
- 32.9 kW
- Displacement
- 2.4 l
- Cylinder bore x stroke
- 87x102.4 mm
- Emission level
- Tier 4 Final/EU Stage IIIA
More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
-
Yes
- Rubber track
-
Yes
- Blade
-
Yes
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
