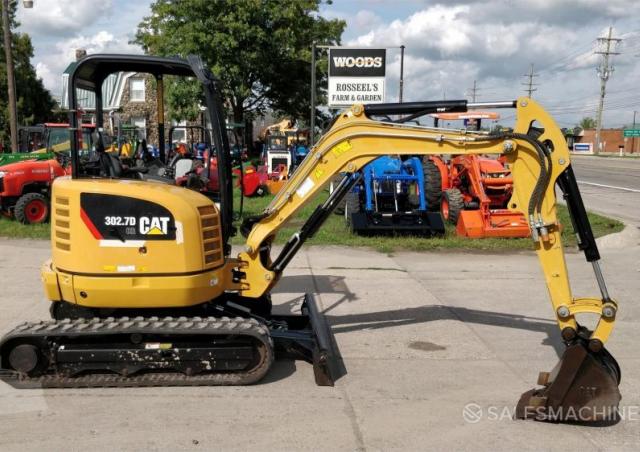

302.7D CR Caterpillar excavator specs & dimensions (2020 - 2021)

Caterpillar 302.7D CR is a Mini Excavator manufactured from 2020 to 2021. It has a weight of 2.67 tons and a track width of 300 mm…

Caterpillar 302.7D CR is a Mini Excavator manufactured from 2020 to 2021. It has a weight of 2.67 tons and a track width of 300 mm. The transport dimensions are 4.255 meters in length, 1.57 meters in width, and 2.408 meters in height. The machine features a tear-out force of 22.5 kN, a dredging depth of 2.544 meters, and a maximum horizontal reach of 4.48 meters. The bucket capacity is 0.41 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Caterpillar 302.7D CR

Technical specs - 302.7D CR Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.67 t
Transport length
4.255 m
Transport width
1.57 m
Transport height
2.408 m
Bucket capacity
0.41 m³
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
4.48 m
Dredging depth
2.544 m
Tear-out force
22.5 kN
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
18 kW
Displacement
1.1 l
No. of cylinders
3
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 302.7D CR FAQ

When was the Caterpillar 302.7D CR manufactured?

The Caterpillar 302.7D CR was manufactured from 2020 to 2021.

How much does the Caterpillar 302.7D CR weigh?

The Caterpillar 302.7D CR weighs 2.67 tons.

What are the transport dimensions of the Caterpillar 302.7D CR mini excavator?

The Caterpillar 302.7D CR has a transport length of 4.26 meters, a transport width of 1.57 meters, and a transport height of 2.41 meters.

What is the track width of the Caterpillar 302.7D CR mini excavator?

The Caterpillar 302.7D CR mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Caterpillar 302.7D CR mini excavator?

The Caterpillar 302.7D CR mini excavator has a dredging depth of 2.544 meters and a maximum horizontal reach of 4.48 meters.

What is the tear-out force of the Caterpillar 302.7D CR mini excavator?

The Caterpillar 302.7D CR mini excavator has a tear-out force of 22.5 kN.

What is the bucket capacity of the Caterpillar 302.7D CR mini excavator?

The Caterpillar 302.7D CR mini excavator has a bucket capacity of 0.41 cubic meters.

What driver protection feature does the Caterpillar 302.7D CR have?

The Caterpillar 302.7D CR has a cabin for driver protection.
