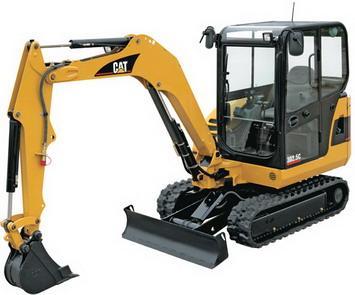

Caterpillar 302.5C excavator specs (2005 - 2015)
The 302.5 C mini excavator model is manufactured by Caterpillar. Find and download detailed specs and data sheets for this machine... Read more
The 302.5 C mini excavator model is manufactured by Caterpillar. Find and download detailed specs and data sheets for this machine here.
Equipped with a powerful Caterpillar engine, this 302.5 C 2.85t machine can provide 18.6kW or 24 horse power for the mini excavator. This Caterpillar mini excavator belongs to the medium sized machine segment in the mini excavators category. The model's dimensions are 4.52m x 1.11m x 2.3m. The bucket of 302.5 C has a capacity of 0.054m³ which is average for this type of machine.
The Caterpillar 302.5 C has been equipped and sold with Rubber track. It does not include Blade, Aircondition and Track adaption. There are more detailed specifications and machine descriptions available in the original Caterpillar 302.5 C specs data sheet. You can download it for free in German and English on LECTURA Specs.
The production stopped in 2015, where this 302.5 C was available at a new list price between €46000 and €59000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.
The most commonly viewed Caterpillar models of this type on LECTURA Specs are the 301.7 D, 305.5 E CR and 304 E CR, and 13 other mini excavators, which currently range from 1t up to 5.4t are also available. Throughout the production cycle of this 302.5 C mini excavator, there have been around 13 models that average a price of €15000 for an age of 8 years Want more detailed specifications? Download the latest Caterpillar 302.5 C specs data sheet on LECTURA Specs today!
Technical specs - 302.5C Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Weight 2.85 t
- Transport length 4.52 m
- Transport width 1.11 m
- Transport height 2.3 m
- Bucket capacity 0.054 m³
- Track width 300 mm
- Driver protection Kb
- Max. Reach horizontal 4,8 m
- Dredging depth 3,8 m
- Tear-out force 13 kN
- Engine manuf. Caterpillar
- Engine type S3L2
- Engine power 18.6 kW
- Displacement 1.318 l
- Revolutions at max torque 2300 rpm
More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
- Rubber track
- Blade
- Aircondition
- Quick hitch hydr.
- Quick hitch mech.
Carbon footprint calculator for Mini Excavators
Use the ERA equipment CO2 Calculator to find out the CO2 footprint per hour of use of the Caterpillar 302.5C or alternative Mini Excavators.
The carbon footprint evaluation can be carried out considering different biofuel scenarios or other variables.
or visit the ERA Equipment CO2 Calculator to find out how to optimise your CO2 emissions.
service provided by
Download specalog and datasheets (PDF)
Caterpillar 302.5C overview
-
Caterpillar 302.5C features overview
Auxiliary Lines and Connectors.
Auxiliary lines and plugs are fitted as standard, meaning the Cat 302.5C comes ready to work – allowing both hammer (one-way) and auger (two way) tool operation. Work tools. Caterpillar is offering a wide range of work tools to enhance machine versatility. The work tools have been designed to optimize performance and deliver excellent value through high productivity and long service life.
Mechanical Quick Coupler. The Cat
Quick Coupler makes frequent tool changes quick and easy. Compatible with all Cat Mini hydraulic work tools, it features a strong, lightweight, low-profile design without debris traps for years of safe work tool replacement applications.
Standard equipment may vary. Consult your Caterpillar dealer for details.
Alternator Automatic engine idle Auxiliary control switch, joystick-mounted (on/off) auxiliary lines Switch valve and control Tools Lines One way (hammer), Two way (auger) to stick Battery, maintenance free Boom cylinder guard Boom pivot control, Joystick mounted Canopy with FOPS per ISO 10262 (Level, and TOPS per ISO 12117 Coat Hook Cup Holder Dozer blade with float function Floor mat Gauges or indicators for: fuel level, engine coolant temperature, hour meter, engine oil pressure, air cleaner, alternator and glow candles, service interval Hydraulic oil cooler Linkage pin joints, maintenance arm Mobile phone holder and socket Parking brake, swing, automatic rubber tracks, 300 mm (1 ft) Seat belt, 50 mm (2 in) Seat, suspension, vinyl lid, standard storage box, lockable Tank cover, locking travel alarm Travel pedals 2 speed travel Work light, cab mounted Wristrest, adjustable 302,5C Mini hydraulic Excavator Specifications -
Engine / Driveline and transmission
Downtime is kept to a minimum with easy access to convenient daily check points.
Service Access. Large, swing-out rear doors allow access to major components and service points within the engine enclosure, including: air filter, engine oil check and fill, engine oil filter element, radiator reservoir tank, Check and Fill, Vertically mounted, spin-on fuel filter/water separator, windscreen washer water
Automatic Engine Idle. Automatically
lowers engine rpm when not in use to save fuel and less environmental noise/emissions. -
Hydraulics
Lift Up Side Cover. Access to the
Implement valve and hydraulic tank is convenient through a lift up side cover. Visibility. A hydraulic oil sight gauge makes fluid level checks quick and easy. S, O, SSM valve. Oil sampling valve S, O, S allows for easy removal of hydraulic fluid for preventative maintenance. -
Tyres / Tracks
Low Operating Costs
The 302.5C offers a spacious and comfortable working area with expansive legroom. Features such as automatic swing lock, power socket, suspension seat, ergonomic controls and well positioned air vents add to a productive work environment. pg. 4 High digging forces, fast cycle times and high bucket rotation angles deliver the productivity demanded by customers. A choice of stick lengths, Cat work tools and dozer float function makes the mini hydraulic bavator 302.5C even more versatile. pg. 5 Protected front linkage lines, extra thick side panels and a protective counterweight reduce impact damage and costly repairs. Service points are easily accessed through large rear doors and a 500 hour engine oil change period lower operating costs. pg. 6
Digging Forces and Cycle Times.
High digging forces and fast cycle times ensure that the Catthe C-Series mini conquerors deliver the productivity customers demand. Stick options. A choice of standard or long stick allows machine matching to application. Bucket angle. High rotation bucket angle combines good spoil retention characteristics and flat back trench properties.
Dozer Blade Float Function. The dozer
float allows easy ground leveling for landscaping and finishing applications, as well as more efficient cleaning.
500-Hour Oil Change. The 500-hour oil
and filter change time helps keep operating costs low. Front Linkage. Protected front connecting lines are routed over the boom, sticking so sides are clean to reduce damage and downtime. -
Other features
Line of Sight Instrumentation.
The operator has a clear view of the machine's monitoring system, making fuel level, water temperature and warning lights easy to see.
Suspension Seat and Wrist Supports.
A suspension seat is standard and coupled with adjustable wrist rests, helping to increase operator comfort and fatigue.
