301.7 CR Caterpillar excavator specs & dimensions (2019 - 2026)

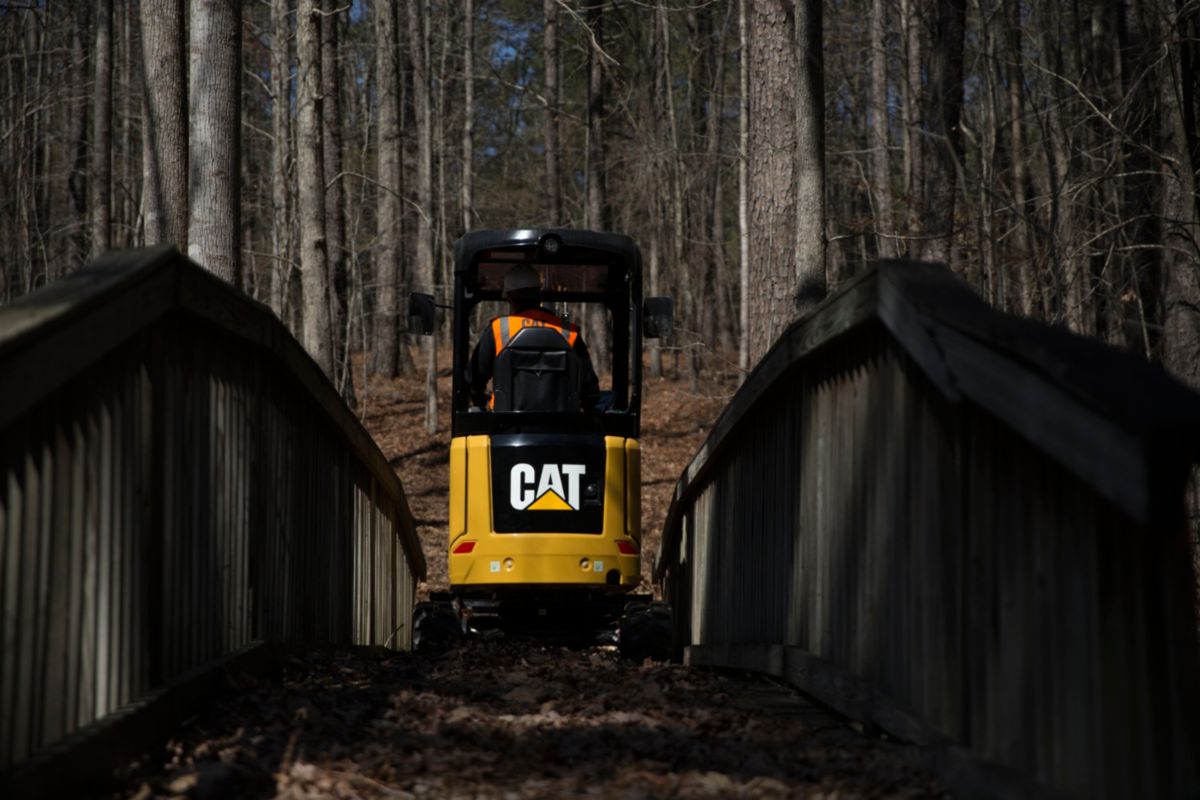

Caterpillar 301.7 CR is a mini excavator manufactured since 2019. It has a weight of 1.83 tons and a track width of 230 mm. The tr…

Caterpillar 301.7 CR is a mini excavator manufactured since 2019. It has a weight of 1.83 tons and a track width of 230 mm. The transport dimensions are 3.59 meters in length, 0.99 meters in width, and 2.3 meters in height. The machine features a tear-out force of 16.2 kN, a dredging depth of 2.54 meters, and a maximum horizontal reach of 4.06 meters. The bucket capacity is 0.022 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

301.7 CR

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 301.7 CR Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.83 t

Transport length: 3.59 m

Transport width: 0.99 m

Transport height: 2.3 m

Bucket capacity: 0.022 m³

Track width: 230 mm

Driver protection: FD

Max. Reach horizontal: 4.06 m

Dredging depth: 2.54 m

Tear-out force: 16.2 kN

Model series: CR

Engine manuf.: Caterpillar

Engine type: C1.1

Engine power: 16.1 kW

Displacement: 1.1 l

Cylinder bore x stroke: 77x81 mm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: Yes
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 301.7 CR FAQ

When was the Caterpillar 301.7 CR manufactured?

The Caterpillar 301.7 CR was first produced in 2019.

How much does the Caterpillar 301.7 CR weigh?

The Caterpillar 301.7 CR weighs 1.83 tons.

What are the transport dimensions of the Caterpillar 301.7 CR mini excavator?

The Caterpillar 301.7 CR has a transport length of 3.59 meters, a transport width of 0.99 meters, and a transport height of 2.3 meters.

What is the track width of the Caterpillar 301.7 CR's undercarriage?

The Caterpillar 301.7 CR has a track width of 230 mm on its undercarriage.

What are the excavation performance specifications of the Caterpillar 301.7 CR mini excavator?

The Caterpillar 301.7 CR has a dredging depth of 2.54 meters and a maximum horizontal reach of 4.06 meters.

What is the tear-out force of the Caterpillar 301.7 CR mini excavator?

The Caterpillar 301.7 CR has a tear-out force of 16.2 kN.

What is the bucket capacity of the Caterpillar 301.7 CR mini excavator?

The bucket capacity of the Caterpillar 301.7 CR mini excavator is 0.022 cubic meters.

What operator safety and support features does the Caterpillar 301.7 CR have?

The Caterpillar 301.7 CR is equipped with a canopy for driver protection.

How much is a Caterpillar 301.7 CR Mini excavator (2019u20132025) worth?

The residual value of the Caterpillar 301.7 CR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar 301.7 CR overview

Engine / Driveline and transmission

Cat C1.1 Engine (U.S. EPA Tier 4 Final/
EU Level, Automatic Engine Idle Automatic Engine Shutdown Automatic Two Speed Travel Fuel Water Separator Power as needed (not available in all regions) Variable variable displacement piston pump Load Sensibility/Flow Sharing Hydraulics

Hydraulics

HYDRAULICS
Smart Tech Electronic Pump Accumulator Automatic Swing Brake Auxiliary Hydraulic Lines Single and Two Way Relief Flow Continuous Auxiliary Tools Flow Auxiliary Line Quick Disconnects

Tyres / Tracks

UNDERCARRIAGE
Expandable Undercarriage Rubber belt or steel track (230 mm/9 in width) Dozer blade with float-tie downs on the track frame.

One-piece boom (1780 mm/70 in) Standard stick (960 mm/37,8 in) or Long Stick (1160 mm/45,7 in) Front shovel Capable (Pin-On/ Manual Coupler/Hydraulikkoppler not available in all regions) Thumb ready (not available in all regions) Certified hooves (not available in all regions

Dimensions and weight

	Lift Point Height		2 m (6.6 ft)	Lift Point Radius (Maximum)
Over Front	Over Side	Over Front	Over Side	m (ft)
Blade Up	Blade Down	Blade Up	Blade Down
2 m	Standard Stick	kg				232	336	246	3.1
(lb)				(517)	(744)	(549)	(10.0)
(6.6 ft)	Long Stick	kg				210	268	223	3.3
(lb)				(467)	(593)	(497)	(10.8)
1.5 m	Standard Stick	kg	442	442	442	204	329	217	3.3
(lb)	(946)	(946)	(946)	(452)	(726)	(481)	(10.8)
(4.9 ft)	Long Stick	kg				186	265	199	3.5
(lb)				(412)	(585)	(440)	(11.7)
1 m	Standard Stick	kg	435	775	458	190	336	203	3.4
(lb)	(938)	(1	644)"	(988)	(420)	(740)	(448)	(11.7)
(3.3 ft)	Long Stick	kg	441	636	464	174	273	186	3.6
(lb),(950),"(1,351)	(1,000)",(384),(600),(411),(12.5)
0 m	Standard Stick	kg	398	938	422	189	398	202	3.4
(lb)	(858)	(2	018)"	(909)	(418)	(877)	(446)	(11.7)
(0 ft)	Long Stick	kg	394	946	417	172	323	185	3.6
(lb)	(848)	(2	031)"	(899)	(380)	(712)	(407)	(11.7)

	Lift Point Height		2 m (6.6 ft)	Lift Point Radius (Maximum)
Over Front	Over Side	Over Front	Over Side	m (ft)
Blade Up	Blade Down	Blade Up	Blade Down
2 m	Standard Stick	kg (lb)				240	336	255	3.1
			(535)	(744)	(569)	(10.0)
(6.6 ft)	Long Stick	kg				217	268	231	3.3
(lb)				(484)	(593)	(515)	(10.8)
1.5 m	Standard Stick	kg	442	442	442	212	329	225	3.3
(lb)	(946)	(946)	(946)	(469)	(726)	(499)	(10.8)
(4.9 ft)	Long Stick	kg				193	265	206	3.5
(lb)				(428)	(585)	(457)	(11.7)
1 m	Standard Stick	kg	449	775	474	197	336	211	3.4
(lb),(970),"(1,644)	(1,023)",(436),(740),(465),(11.7)
(3.3 ft)	Long Stick	kg	455	636	480	181	273	194	3.6
(lb),(982),"(1,351)	(1,035)",(399),(600),(427),(12.5)
0 m	Standard Stick	kg	413	938	438	197	398	210	3.4
(lb)	(890)	(2	018)"	(944)	(434)	(877)	(464)	(11.7)
(0 ft)	Long Stick	kg	408	946	433	179	323	192	3.6
(lb)	(879)	(2	031)"	(933)	(395)	(712)	(424)	(11.7)

Other features

OPERATOR ENVIRONMENT
Canopy Only ROPS ISO 12117-2:2008 TOPS ISO 12117:1997 Top Guard ISO 10262:1998 (Level, Next Generation Standard LCD Monitor Machine Security Standard Key with Pass Code or Push to Start with Fob Adjustable wrist rests Vinyl seat (with or without suspension) Retractable High Visibility Seat Belt (75 mm/3 in) Coat Hook Cup Holder Storage Pocket Skylight Washable Floor Mat Travel Pedals and Lever's Next Generation Stick Steer Hydraulic Lockout All Controls machine 2-point lift Tilting can
ELECTRICAL
12 volt battery software (machine and monitor) Maintenance-free battery warning Horn 12 volt Power Socket Boom Light, Halogen Pattern Changer

Tables

Specifications Engine

Engine Model	C1.1
Rated Net Power @ 2	400 rpm ISO 9249/EEC 80/1269"	14.3 kW	19.2 hp

Gross Power ISO 14396

16.1 kW

21.6 hp

Bore	77.0 mm	3.0 in
Stroke	81.0 mm	3.2 in
Displacement	1.1 L	69.0 in3

Long Stick	7 kg	15 lb
Steel Tracks	50 kg	110 lb
Expandable Undercarriage	Standard

Travel System
Travel Speed – High	4.4 km/h	2.7 mph
Travel Speed – Low	2.9 km/h	1.8 mph
Maximum Traction Force – High Speed	11.9 kN	2	675.2 lbf"
Maximum Traction Force – Low Speed	18.4 kN	4	136.5 lbf"
Ground Pressure – Minimum Weight	27.9 kPa	4.0 psi
Ground Pressure – Maximum Weight	28.7 kPa	4.2 psi
Gradeability (maximum)	30 degrees
