300.9D VPS  Caterpillar excavator specs & dimensions (2017 - 2026)

Caterpillar 300.9D VPS is a Mini Excavator manufactured since 2017, with a weight of 1.09 tons. It features a track width of 180 m…

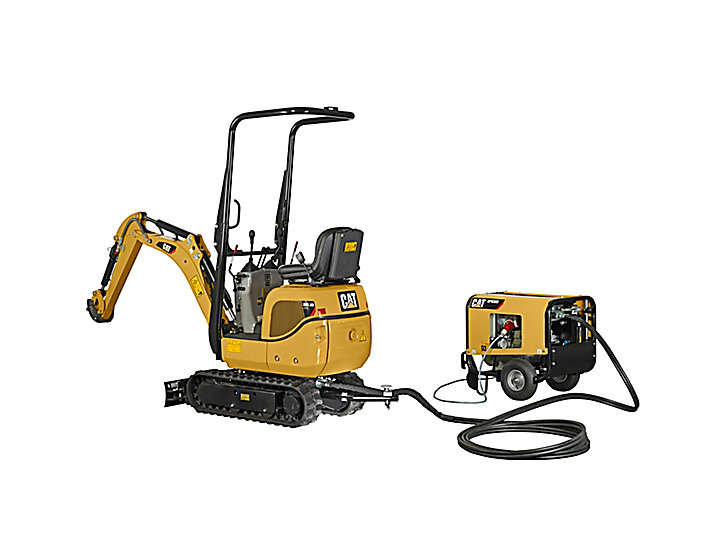

Caterpillar 300.9D VPS is a Mini Excavator manufactured since 2017, with a weight of 1.09 tons. It features a track width of 180 mm, a transport length of 2.48 meters, a transport width of 0.7 meters, and a transport height of 1.51 meters. The machine has a tear-out force of 8.9 kN and a maximum horizontal reach of 3.03 meters. The bucket capacity is 0.012 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators Caterpillar 300.9D VPS
Mini Excavators Caterpillar 300.9D VPS
Mini Excavators Caterpillar 300.9D VPS
Mini Excavators Caterpillar 300.9D VPS

Technical specs - 300.9D VPS  Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.09 t
Transport length
2.48 m
Transport width
0.7 m
Transport height
1.51 m
Bucket capacity
0.012 m³
Track width
180 mm
Driver protection
Ü
Max. Reach horizontal
3.03 m
Dredging depth
1.73 m
Tear-out force
8.9 kN
Model series
VPS
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
13.7 kW
Displacement
0.854 l
Revolutions at max torque
2100 rpm
No. of cylinders
3

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 300.9D VPS  FAQ

When was the Caterpillar 300.9D VPS manufactured?

The Caterpillar 300.9D VPS was first produced in 2017.

How much does the Caterpillar 300.9D VPS mini excavator weigh?

The Caterpillar 300.9D VPS mini excavator weighs 1.09 tons.

What are the transport dimensions of the Caterpillar 300.9D VPS mini excavator?

The Caterpillar 300.9D VPS mini excavator has a transport length of 2.48 meters, a transport width of 0.7 meters, and a transport height of 1.51 meters.

What is the fuel consumption of the Caterpillar 300.9D VPS mini excavator?

The Caterpillar 300.9D VPS mini excavator has a fuel consumption range of 1 to 2 liters per hour, with an average consumption of 1.6 liters per hour.

What is the track width of the Caterpillar 300.9D VPS mini excavator?

The Caterpillar 300.9D VPS has a track width of 180 mm.

What are the excavation performance specifications of the Caterpillar 300.9D VPS?

The Caterpillar 300.9D VPS has a dredging depth of 1.73 meters and a maximum horizontal reach of 3.03 meters.

What is the tear-out force of the Caterpillar 300.9D VPS?

The Caterpillar 300.9D VPS has a tear-out force of 8.9 kN.

What is the bucket capacity of the Caterpillar 300.9D VPS mini excavator?

The bucket capacity of the Caterpillar 300.9D VPS mini excavator is 0.012 cubic meters.

What operator safety features does the Caterpillar 300.9D VPS have?

The Caterpillar 300.9D VPS is equipped with a roll-over bar for driver protection.
