CX55D Case excavator specs & dimensions (2023 - 2026)

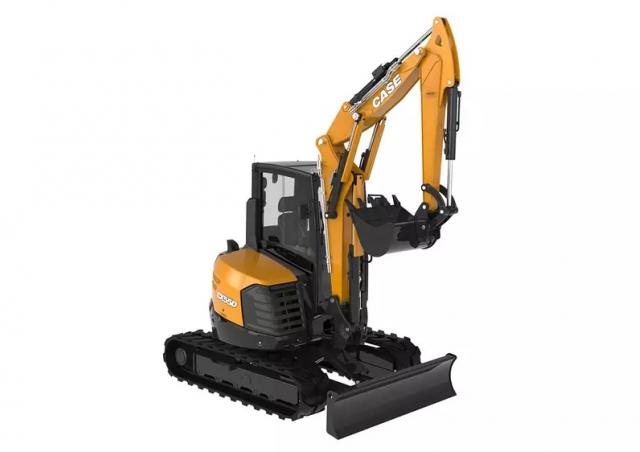

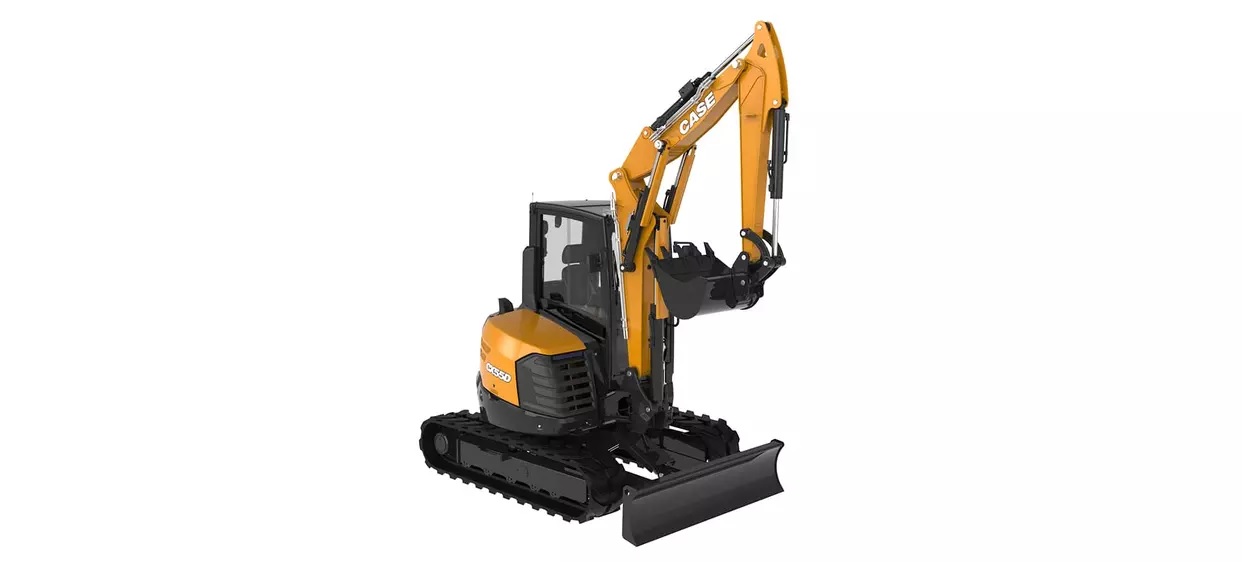

Case CX55D is a Mini Excavator manufactured since 2023. It has a weight of 5.4 tons and a track width of 400 mm. The transport dim…

Case CX55D is a Mini Excavator manufactured since 2023. It has a weight of 5.4 tons and a track width of 400 mm. The transport dimensions are 5.12 m in length, 1.9 m in width, and 2.57 m in height. The machine features a tear-out force of 43 kN, a dredging depth of 3.74 m, and a maximum horizontal reach of 6.56 m. The bucket width is 0.8 m, with a capacity ranging from 0.041 m³ to 0.254 m³, and a standard capacity of 0.152 m³. Special equipment includes air conditioning, a blade, hydraulic and mechanical quick hitches, and rubber tracks.

Mini Excavators Case CX55D

Technical specs - CX55D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.4 t
Transport length
5.12 m
Transport width
1.9 m
Transport height
2.57 m
Bucket capacity
0.152 m³
Bucket capacity min.
0.041 m³
Bucket capacity max.
0.254 m³
Bucket width
0.8 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
6.56 m
Dredging depth
3.74 m
Tear-out force
43 kN
Model series
D
Engine manuf.
Kubota
Engine type
V2403-CR-T
Engine power
42.6 kW
Displacement
2.434 l
Revolutions at max torque
2300 rpm
No. of cylinders
4
Emission level
V

More technical details, like: standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Case CX55D FAQ

When was the Case CX55D manufactured?

The Case CX55D was first produced in 2023.

How much does the Case CX55D mini excavator weigh?

The Case CX55D mini excavator weighs 5.4 tons.

What are the transport dimensions of the Case CX55D mini excavator?

The Case CX55D has a transport length of 5.12 meters, a transport width of 1.9 meters, and a transport height of 2.57 meters.

What is the track width of the Case CX55D mini excavator?

The Case CX55D mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Case CX55D mini excavator?

The Case CX55D mini excavator has a dredging depth of 3.74 meters and a maximum horizontal reach of 6.56 meters.

What is the tear-out force of the Case CX55D mini excavator?

The Case CX55D mini excavator has a tear-out force of 43 kN.

What are the bucket specifications of the Case CX55D mini excavator?

The Case CX55D mini excavator has a bucket capacity of 0.152 mu00b3, with a maximum capacity of 0.25 mu00b3 and a minimum capacity of 0.04 mu00b3, and a bucket width of 0.8 meters.

What driver protection features does the Case CX55D have?

The Case CX55D has driver protection in the form of a cabin.

How much is a Case CX55D Mini excavator (2023u20132025) worth?

The residual value of the Case CX55D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
