CX55B ZTS Case excavator specs & dimensions (2011 - 2017)

Case CX55B ZTS is a mini excavator manufactured from 2011 to 2017, with a weight of 5.3 tons. It features a track width of 400 mm,…

Case CX55B ZTS is a mini excavator manufactured from 2011 to 2017, with a weight of 5.3 tons. It features a track width of 400 mm, a transport length of 5.37 meters, a transport width of 1.96 meters, and a transport height of 2.6 meters. The bucket capacity is a minimum of 0.13 cubic meters. Special equipment includes a blade and rubber tracks.

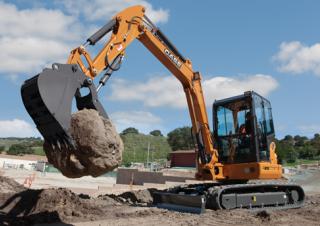

Mini Excavators Case CX55B ZTS

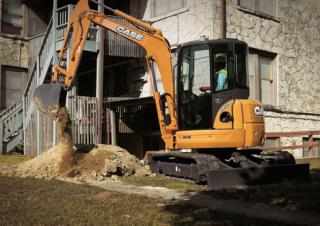

Mini Excavators Case CX55B ZTS
Mini Excavators Case CX55B ZTS
Mini Excavators Case CX55B ZTS
Mini Excavators Case CX55B ZTS
Mini Excavators Case CX55B ZTS

Technical specs - CX55B ZTS Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.3 t
Transport length
5.37 m
Transport width
1.96 m
Transport height
2.6 m
Bucket capacity min.
0.130 m³
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
6.19 m
Dredging depth
3.9 m
Tear-out force
23.6 kN
Model series
B
Engine manuf.
Yanmar
Engine type
4TNV88XYB
Engine power
32 kW
Displacement
2.19 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity, bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX55B ZTS FAQ

When was the Case CX55B ZTS manufactured?

The Case CX55B ZTS was manufactured from 2011 to 2017.

How much does the Case CX55B ZTS mini excavator weigh?

The Case CX55B ZTS mini excavator weighs 5.3 tons.

What are the transport dimensions of the Case CX55B ZTS mini excavator?

The Case CX55B ZTS mini excavator has a transport length of 5.37 meters, a transport width of 1.96 meters, and a transport height of 2.6 meters.

What is the track width of the Case CX55B ZTS mini excavator?

The Case CX55B ZTS mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Case CX55B ZTS mini excavator?

The Case CX55B ZTS mini excavator has a dredging depth of 3.9 meters and a maximum horizontal reach of 6.19 meters.

What is the tear-out force of the Case CX55B ZTS mini excavator?

The Case CX55B ZTS mini excavator has a tear-out force of 23.6 kN.

What is the minimum bucket capacity of the Case CX55B ZTS mini excavator?

The minimum bucket capacity of the Case CX55B ZTS mini excavator is 0.13 cubic meters.

What operator safety features does the Case CX55B ZTS have?

The Case CX55B ZTS has a cabin for driver protection.

How much is a Case CX55B ZTS Mini excavator (2011u20132017) worth?

The residual value of the Case CX55B ZTS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Case CX55B ZTS overview

Dimensions and weight

I Track widthmm400
J Undercarriage lengthmm2.910
K Track length on groundmm2.480
M Center distance of tumblersmm1.970
N Blade radius on groundmm1.690
X Blade max liftingmm495
Y Blade max loweringmm375
B Blade widthmm1.960
E Blade heightmm345
Variable displacement pumps type________________axial piston
Flow delivery_____________________________2 x 571 l/min"
Gear pump delivery ___________________________338 l/min"
Maximum operating pressure______________________ 230 bar

Tables

Weightton511"
B Max widthmm1.960
L Max lengthmm5.370
H Max heightmm2.600
Dipperstickmm1.870
Bucket thicknessmm700
G Max digging depthmm3.900
Bucket Breakout forcekN353"
Dipperstick Breakout forcekN236"
A Min front slew radiusmm2.580
C Max reachmm6.190
D Max dump heightmm3.840
F Max digging heightmm5.380
Lifting capacity in tonnes,"2,0 m3,0 m"
DEPTH LEVEL
1 m above ground,"1,81,81,81,8"
Ground level,"1,91,92,31,1"
1 m below ground,"2,92,22,41,1"
2 m below ground,"3,72,22,11,1"
