CX33C Case excavator specs & dimensions (2021 - 2026)

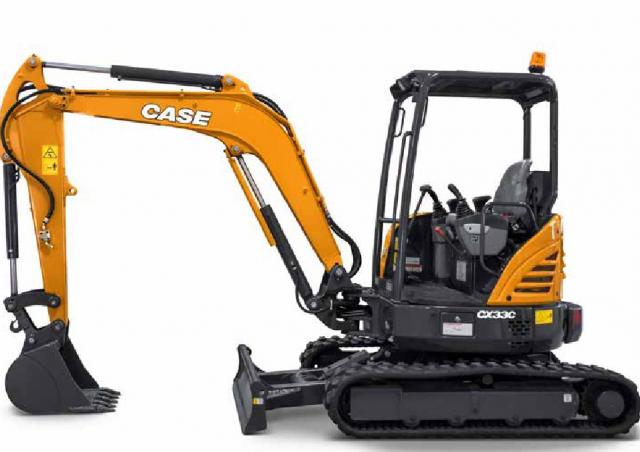

Case CX33C is a mini excavator manufactured since 2021, with a weight of 3.1 t and a track width of 300 mm. It has a transport len…

Case CX33C is a mini excavator manufactured since 2021, with a weight of 3.1 t and a track width of 300 mm. It has a transport length of 4.66 m, a transport width of 1.55 m, and a transport height of 2.5 m. The machine features a tear-out force of 31.4 kN, a dredging depth of 3.03 m, and a maximum horizontal reach of 5.06 m. The bucket capacity is a minimum of 0.09 m³. Special equipment includes air conditioning, a blade, and rubber tracks.

Mini Excavators Case CX33C

Technical specs - CX33C Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.1 t
Transport length
4.66 m
Transport width
1.55 m
Transport height
2.5 m
Bucket capacity min.
0.09 m³
Track width
300 mm
Driver protection
FD
Max. Reach horizontal
5.06 m
Dredging depth
3.03 m
Tear-out force
31.4 kN
Model series
C
Engine manuf.
Yanmar
Engine type
3TNV88F
Engine power
18.2 kW
Displacement
1.642 l
Revolutions at max torque
1200 rpm
Max. torque
89 Nm
Emission level
V

More technical details, like: bucket capacity, bucket capacity max., bucket width, standard tyres, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX33C FAQ

When was the Case CX33C manufactured?

The Case CX33C was first produced in 2021.

How much does the Case CX33C mini excavator weigh?

The Case CX33C mini excavator weighs 3.1 tons.

What are the transport dimensions of the Case CX33C mini excavator?

The Case CX33C has a transport length of 4.66 meters, a transport width of 1.55 meters, and a transport height of 2.5 meters.

What is the track width of the Case CX33C mini excavator?

The Case CX33C mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Case CX33C mini excavator?

The Case CX33C mini excavator has a dredging depth of 3.03 meters and a maximum horizontal reach of 5.06 meters.

What is the tear-out force of the Case CX33C mini excavator?

The Case CX33C mini excavator has a tear-out force of 31.4 kN. No power rating data is provided for this model in the source.

What is the minimum bucket capacity of the Case CX33C mini excavator?

The minimum bucket capacity of the Case CX33C mini excavator is 0.09 cubic meters.

What operator safety and support features does the Case CX33C have?

The Case CX33C has a canopy for driver protection.
