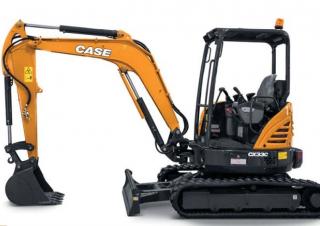

CX33C Case excavator specs & dimensions (2017 - 2020)

HIGH VERSATILITY, Working range
- Keep giggling with the C-Series minis: Maximum reach is now + 10 % higher compared to the previous series. - Load high sided trucks easily: Best-in-class dump clearance combined with superior stability make loading of trucks an easy task. - Save time: The C-Series minis deliver faster cycle times during each combined operation, thanks to their excellent boom rotation speed. - Choose the arm most suitable for you: the C-Series minis adjust a wide range of customer needs, high breakout force with short arms or outstanding digging depth and reach with long arms. Attachments: Get the best out of your CASE mini with the integrated attachment. Lift function: All models can be fitted with an additional bolt counterweight that increases stability and lifting capacity even more. A certified Object Handling Kit can be used for safe lifters.
SAFETY FIRST
C-Series Minis: No Compromise in Safety, ROPS / TOPS / FOPS: All models and versions of C-Series meet the requirements for Rollover/Tip Over and Falling Objects Protective Structure. Emergency Stop Switch: This switch allows immediate stopping of the engine in case of emergency. Pilot system with accumulator: This standard feature allows the operator to safely deposit the attachment even on the switched off engine for greater safety. Travel alarm: An audible alarm warns people near the machine when it moves forward or backward. This feature is optional on all four models. Blade fuse valves: Prevent by hose failure (optional on CX33C and CX37C). Double fl ow rollers: Detracking can be dangerous for the operator and those close to the machine. CASE The C-Series minis have a dual flange roll design that minimises the risk of detracking. Zero Tail Swing (ZTS): The ZTS construction plan does not mean any risk hitting obstacles using rear suspension as well as there are two types of loaders attached to the retractable wheel; this includes an anti-roll valve device which has been fitted at least once more than three times during each other machines' work hours without requiring additional protection from one handheld manual drive

HIGH EFFICIENCY
Clean engine and auto-idle system, proven, reliable, fuel efficient, low emission and low noise Kubota T4 Final Motor (CX26C and CX30C). Reliable and environmentally friendly T4 Final YanmarMotor (CX33C and CX37C). Standard Auto Idle to CX33C and CX37C: The engine automatically slows down to idle speed after five seconds of inactivity. This means less fuel consumption, less noise and less overall wear
MODERN AND FUNCTIONAL CLUSTER
Easy-to-read digital cluster The digital cluster is easy to read, gives the operator station a modern look and provides useful information: gauges: fuel level, engine coolant temperature, info and warning lamps: hydraulic QC lamp, travel speed, engine coolant temperature, engine oil pressure, battery charger, low fuel.

EASY SERVICEABILITY
- Easy access to battery, hydraulic valves and all regular service components - Two-piece blade hydraulic hoses - Extended component life.
EASY AND SAFE SERVICEABILITY
Grouped service points under the C-Series hood are designed for servicing capability: Rationalized service point layout, Convenient check points, easy to remove side panels for full maintenance and repair access, Two piece blade hydraulic hoses.

Comfortable and durable cabin with suspension seat, CASE CX26C, CX30C and CX37C feature a spacious cab with reduced sound levels and excellent visibility. Ergonomically placed joysticks and adjustable wrist rests make the operator station a pleasant workplace. Standard equipment: weight-adjustable suspension seat, radio USB with 2 speakers, fold-up pedals, multiple storage compartments, air conditioning (optional for CX37C). Fold-in front window can be opened easily and safely stored in an open position to improve ventilation and visibility (cab type).
HIGH VERSATILITY
- Offering of integrated attachments - Mono or bi-directional hydraulic oil flow - Additional counterweight available - Steel tracks available (CX33C and CX37C)

- Low noise inside the cab - 1 and 2 auxiliary hydraulics - Digital cluster - Radio with USB - Pendulum seat - Air conditioning (CX37C)

Standard arm (1120 mm on CX26C / CX30C; 1300 mm on CX33C / CX37C) Rubber tracks (250 mm on CX26C ; 300 mm on CX30C, CX33C, CX37C) ROPS / TOPS / FOPS compliant cab/ Canopy emergency hold switch Pilot system with accumulator 2 Speed travel with autoshift system 1. Auxiliary 2-way shifting controlled with pedal Foldable boom swing pedal Suspension seat with seat belt Radio/USB Predisposition (version of the CAB) Standard anti-theft device with interval setting Waterproof digital instrument cluster Centralized lubrication intake
OPTIONAL EQUIPMENT
Long arm (1350 mm on CX26C / CX30C; 1600 mm on CX33C / CX37C) 2nd auxiliary circuit controlled with joystick Hydraulic quick coupler provision Beacon travel alarm Additional counterweight Air conditioning (CX37C) Steel track (CX33C and CX37C) Blade guard valves (CX37C) Object handling kit Radio with USB (cab version)

- X-frame undercarriage - Cylinder guards - Low risk of derailment with double length rollers
Boom and arm reinforced mounting pin: the pivot pin
This keeps boom and arm together is a critical point on each excavator. On CASE C-Series, the pin is secured from both sides, minimizing the risk of playing between boom and arm. Protected Cylinders: Boom and blade cylinders as well as safety valves are well protected with steel covers.
