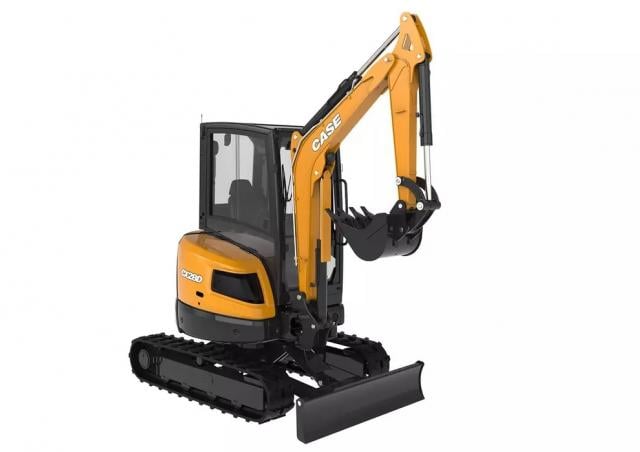

CX28D Case excavator specs & dimensions (2023 - 2026)

Case CX28D is a mini excavator manufactured since 2023, with a weight of 3 tons. It features a track width of 280 mm, a transport …

Case CX28D is a mini excavator manufactured since 2023, with a weight of 3 tons. It features a track width of 280 mm, a transport length of 4.28 meters, a transport width of 1.55 meters, and a transport height of 2.53 meters. The machine has a tear-out force of 35 kN, a dredging depth of 2.85 meters, and a maximum horizontal reach of 4.91 meters. The bucket width is 0.5 meters, with a bucket capacity ranging from 0.033 m³ to 0.154 m³, and a standard bucket capacity of 0.049 m³. Special equipment includes air conditioning, a blade, hydraulic quick hitch, mechanical quick hitch, and rubber tracks.

Mini Excavators Case CX28D

Technical specs - CX28D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3 t
Transport length
4.28 m
Transport width
1.55 m
Transport height
2.53 m
Bucket capacity
0.049 m³
Bucket capacity min.
0.033 m³
Bucket capacity max.
0.154 m³
Bucket width
0.5 m
Track width
280 mm
Max. Reach horizontal
4.91 m
Dredging depth
2.85 m
Tear-out force
35 kN
Model series
D
Engine manuf.
Kubota
Engine type
D1703-M
Engine power
18.2 kW
Displacement
1.647 l
Revolutions at max torque
2200 rpm
Max. torque
97.4/1500 Nm
No. of cylinders
3
Emission level
V

More technical details, like: standard tyres, driver protection, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Case CX28D FAQ

When was the Case CX28D manufactured?

The Case CX28D was first produced in 2023.

How much does the Case CX28D mini excavator weigh?

The Case CX28D mini excavator weighs 3 tons.

What are the transport dimensions of the Case CX28D mini excavator?

The Case CX28D mini excavator has a transport length of 4.28 meters, a transport width of 1.55 meters, and a transport height of 2.53 meters.

What is the track width of the Case CX28D mini excavator's undercarriage?

The Case CX28D mini excavator has a track width of 280 mm.

What are the excavation performance specifications of the Case CX28D mini excavator?

The Case CX28D mini excavator has a dredging depth of 2.85 meters and a maximum horizontal reach of 4.91 meters.

What is the tear-out force of the Case CX28D mini excavator?

The Case CX28D mini excavator has a tear-out force of 35 kN.

What are the specifications of the primary work tool bucket on the Case CX28D mini excavator?

The Case CX28D mini excavator's bucket has a capacity of 0.049 mu00b3, with a minimum capacity of 0.03 mu00b3 and a maximum capacity of 0.15 mu00b3, and a bucket width of 0.5 meters.
