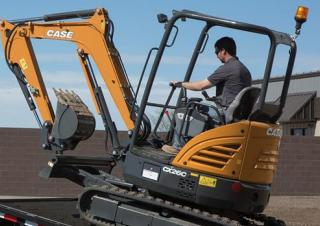

CX26C Case excavator specs & dimensions (2017 - 2020)

HIGH VERSATILITY, Working range
- Keep giggling with the C-Series minis: Maximum reach is now + 10 % higher compared to the previous series. - Load high sided trucks easily: best dump clearance combined with superior stability make loading trucks an easy task. - Save time: The C-Series minis deliver faster cycle times during each combined operation, thanks to their excellent boom rotation speed. - Choose the arm most suitable for you: K Series minis adjust various customer needs, high breakout force with short arms or outstanding digging depth and reach with long arms. Attachments: Get the best out of your CASE mini with the integrated attachment range. Lift function: Both models can be provided with an additional bolt-on counterweight that increases stability and lift performance even more. For safe lifting operations, machines can be equipped with a certified Object Handling Kit.
SAFETY FIRST
C-Series Minis: No compromise on safety, ROPS / TOPS / FOPS: All models and versions of the C-Series comply with Rollover/Tip Over and Falling Objects Protective Structure. Emergency stop switch: CX26C and CX37C standard feature a switch that immediately stops the engine in case of an emergency. Pilot system with accumulator: This standard feature allows the operator to safely deposit the attachment even when the engine is switched off for greater safety. Travel alarm: An audible alarm alert warns people near the machine if it moves forward or reverse. This feature is available as an option both on CX26C and under CX37C. Blade fuse valves: prevent slipping respectively dropping due to hose failure (optional on the CX37C). Double wing rollers: Detracking can be dangerous for the operator and those close to the machine. CASE C-Series minis have designed a double length roller which minimises the risk of detracking. Zero Tail Swing (FTS): The lift truck isn't driven towards the rear end of the wheel – without any pull down from the back of the car! CASE C-Series minis are designed to provide dual long strutch at least one side because they minimized by reducing the risk of

- Long and short arms available - Best-in-class reach, dump clearance and digging depth - Versatile boom swing angle

HIGH EFFICIENCY
Clean engine and auto-idle system, proven, reliable, fuel efficient, low emissions and low noise Kubota T4 Final / Stage IIIA (CX26C). Reliable and environmentally friendly machine T4 Final / Stage IIIA Yanmar (CX37C). Standard car idle at CX37C: The engine automatically slows down to idling speed after five seconds of inactivity. This means less fuel consumption, less noise and less total wear.
MODERN AND FUNCTIONAL CLUSTER
Easy-to-read digital cluster The digital cluster is easy to read, gives the operator station a modern look and provides useful information: gauges: fuel level, engine coolant temperature, info and warning lamps: hydraulic QC lamp, travel speed, engine coolant temperature, engine oil pressure, battery charger, low fuel.

EASY SERVICEABILITY
- Easy access to battery, hydraulic valves and all regular service components - Two-piece blade hydraulic hoses - Extended component life.
EASY AND SAFE SERVICEABILITY
Grouped service points under the C-Series hood are designed for servicing capability: Rationalized service point layout, Convenient check points, easy to remove side panels for full maintenance and repair access, Two piece blade hydraulic hoses.

HIGH VERSATILITY
- Offering of integrated attachments - Mono or bi-directional hydraulic oil flow - Additional counterweight available - Steel tracks available (CX37C)

Comfortable and durable cabin with suspension seat, CASE CX26C and CX37C feature a spacious cab with reduced sound levels and excellent visibility. Ergonomically placed joysticks and adjustable wrist rests make the operator station a pleasant workplace. Standard equipment: weight-adjustable pendulum seat, radio USB with 2 speakers, fold-up pedals, multiple storage compartments, air conditioning (optional for CX37C). Fold-in front window can be opened easily and safely stored in an open position to improve ventilation and viewing (cab type).

- Low noise inside the cab - 1 and 2 auxiliary hydraulics - Digital cluster - Radio with USB - Pendulum seat - Air conditioning (CX37C)

- X-frame undercarriage - Cylinder guards - Low risk of derailment with double length rollers

World class components and a well organized facility, world class components: C-Series minis are designed for reliability, components are sourced from the best suppliers on the market and mounted in CASE's Excavator Hub, a production line for World Class Manufacturing. The result: simply highly reliable machines. Boom and arm reinforced mounting needle: The pivot pin that holds boom together and arm is a critical point with each excavator. With CASE C Series, the pin is secured from either side to minimize the risk of playing between boom and arm. Protected cylinders: boom and blade cylinders as well as safety valves are well protected with a steel lid.
