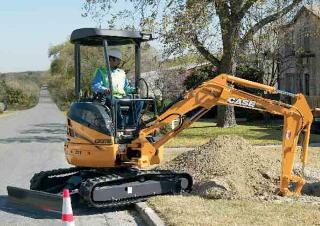

Case CX 27 B is a Mini Excavator manufactured from 2008 to 2012. It has a weight of 2.5 tons and a track width of 250 mm. The tran…

Case CX 27 B is a Mini Excavator manufactured from 2008 to 2012. It has a weight of 2.5 tons and a track width of 250 mm. The transport dimensions are 4.13 meters in length, 1.5 meters in width, and 2.5 meters in height. The tear-out force is 15 kN, and it features a bucket width of 0.3 meters with a maximum bucket capacity of 0.35 cubic meters. Special equipment includes a blade and rubber tracks.

CX 27 B

Years of manufacture: 2008—2012

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - CX 27 B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.5 t

Transport length: 4.13 m

Transport width: 1.5 m

Transport height: 2.5 m

Bucket capacity max.: 0.35 m³

Bucket width: 0.3 m

Track width: 250 mm

Driver protection: FD

Max. Reach horizontal: 4.64 m

Dredging depth: 2.54 m

Tear-out force: 15 kN

Model series: B

Engine manuf.: Yanmar

Engine type: 3TNV82A-SYB

Engine power: 17 kW

Displacement: 1.33 l

Revolutions at max torque: 2200 rpm

More technical details, like: bucket capacity, bucket capacity min., standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case CX 27 B FAQ

When was the Case CX 27 B manufactured?

The Case CX 27 B was manufactured from 2008 to 2012.

How much does the Case CX 27 B mini excavator weigh?

The Case CX 27 B mini excavator weighs 2.5 tons.

What are the transport dimensions of the Case CX 27 B mini excavator?

The Case CX 27 B has a transport length of 4.13 meters, a transport width of 1.5 meters, and a transport height of 2.5 meters.

What is the track width of the Case CX 27 B mini excavator?

The Case CX 27 B mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Case CX 27 B mini excavator?

The Case CX 27 B mini excavator has a dredging depth of 2.54 meters and a maximum horizontal reach of 4.64 meters.

What is the tear-out force of the Case CX 27 B mini excavator?

The Case CX 27 B mini excavator has a tear-out force of 15 kN.

What are the bucket specifications of the Case CX 27 B mini excavator?

The Case CX 27 B mini excavator has a maximum bucket capacity of 0.35 cubic meters and a bucket width of 0.3 meters.

What operator safety and support features does the Case CX 27 B have?

The Case CX 27 B is equipped with a canopy for driver protection.

How much is a Case CX 27 B Mini excavator (2008u20132012) worth?

The residual value of the Case CX 27 B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Case CX 27 B overview

Case CX 27 B features overview

still located at the rear thanks to the new layout
The new engines, however, are access to major components such as air filter, engine oil filter and the water separator, is now highly improved and placed on a wide, hinged plate.

Environment

a sophisticated “roll away” shape. for quicker backfilling operations;, for excellent gradeability
The front blade, newly designed, features In backfilling operations the earth rolls away in front of the blade. It also ensures unrivalled strokes: raised with the blade to overcome obstacles such as heaps of earth on the job site.

Tyres / Tracks

A smart, compact design rotates completely within the width of its tracks. Excavators will not hit any jobsite objects or suffer damage.

Dimensions and weight

		CX20BZTScanopy CX22BZTScab	CX27BZTS canopy CX27BZTScab
A Overall length	mm	3820	4130
B Overall width	mm	1400	1500
C Overall height	mm	2460	2500
D Basic machine length	mm	2260		2410
E Width of upperstructure	mm	1400		1400
F Tail swing radius	mm	700 / 740	750
G Ground clearance of rear end	mm	480		520
H Length of tracks on ground	mm	1490		1590
I Overall length of crawler	mm	1870		1980
J Overall width of crawler	mm	1400		1500
K Track gauge	mm	1150		1250
L Crawler shoe width (rubber/steel)	mm	250		250
M Blade height	mm	300		300
Ground clearance of undercarriage	mm	250		250
WEIGHTS AND		CX20BZTScanopy		CX27BZTS	canopy
GROUND PRESSURE	CX22BZTScab	CX27BZTScab
OPERATING WEIGHT
Rubber tracks	kg	2100	2420	2490	2630
Steel tracks	kg	2230	2550	2620	2760
GROUND PRESSURE
Rubber tracks	bar	0.26	0.27	0.28	0.30
Steel tracks	bar	0.27	0.29	0.30	0.31
Additional bolted counterweight is available when “High stability” performance is required:
Weight	kg	+172		+172
Tail swing radius	mm	+74		+74

Height (m)	Reach
1.0 m	1.5 m	2.0 m	2.5 m	3.0 m	3.5 m	4.0 m	Max reach
Front	Side	Front	Side	Front	Side	Front	Side	Front	Side	Front	Side	Front	Side	Front	Side	Reach m
4.0
3.5
3.0							0.57	0.52
2.5									0.54	0.40
2.0							0.59	0.53	0.55	0.40
1.5					0.92	0.71	0.70	0.52	0.54	0.39	0.44	0.32
1.0					0.97	0.67	0.70	0.52	0.54	0.38	0.43	0.31			0.42	0.30	3.80
0.5					0.94	0.65	0.68	0.48	0.53	0.38	0.43	0.31
0					0.94	0.64	0.67	0.48	0.52	0.37
-0.5	1.34	1.34	1.54	1.00	0.94	0.65	0.67	0.47	0.52	0.37
-1.0	1.97	1.97	1.50	1.02	0.95	0.66	0.68	0.48
-1.5			0.95	0.95	0.67	0.67
-2.0

Height (m)	Reach
1.0 m	1.5 m	2.0 m	2.5 m	3.0 m	3.5 m	4.0 m	Max reach
Front	Side	Front	Side	Front	Side	Front	Side	Front	Side	Front	Side	Front	Side	Front	Side	Reach m
4.0
3.5									0	41"	0.37
3.0									0.39	0.34
2.5
2.0									0.40	0.34	0.38	0.26
1.5							0.51	0.45	0.46	0.33	0.37	0.25
1.0					0.90	0.60	0.63	0.43	0.47	0.32	0.37	0.25			0.31	0.20	3.80
0.5					0.86	0.57	0.61	0.41	0.46	0.31	0.36	0.24
0			0.86	0.86	0.84	0.55	0.59	0.39	0.45	0.30	0.36	0.24
-0.5	0.94	0.94	1.28	0.89	0.84	0.55	0.59	0.39	0.45	0.30	0.36	0.24
-1.0	1.36	1.36	1.44	0.90	0.85	0.55	0.59	0.39	0.45	0.30
-1.5	1.90	1.90	1.34	0.92	0.86	0.57	0.60	0.40
-2.0			0.59	0.59	0.43	0.43

Height (m)	Reach
1.0 m Front Side	1.5 m	2.0 m	2.5 m	3.0 m	3.5 m	4.0 m	Max reach
Front	Side	Front	Side	Front	Side	Front	Side	Front	Side	Front	Side	Front	Side	Reach m
4.0							0.47	0.47
3.5									0.42	0.42
3.0											0.42	0.36
2.5											0.41	0.36
2.0									0.46	0.46	0.44	0.36	0.40	0.28
1.5					0.86	0.86	0.64	0.61	0.54	0.45	0.48	0.35	0.40	0.28
1.0					1.18	0.81	0.80	0.58	0.62	0.44	0.49	0.34	0.40	0.27	0.36	0.25	4.20
0.5					1.14	0.77	0.80	0.55	0.61	0.42	0.48	0.33	0.39	0.27
0			0.64	0.64	1.13	0.76	0.79	0.54	0.60	0.41	0.48	0.33	0.39	0.27
-0.5	0.86	0.86	1.08	1.08	1.13	0.76	0.78	0.54	0.59	0.41	0.47	0.33
-1.0	1.28	1.28	1.62	1.27	1.14	0.76	0.79	0.54	0.59	0.41	0.48	0.33
-1.5	1.81	1.81	1.56	1.29	1.06	0.78	0.78	0.55	0.56	0.42
-2.0			0.99	0.99	0.70	0.70	0.45	0.45

Height (m)	Reach
1.0 m Front Side	1.5 m	2.0 m	2.5 m	3.0 m	3.5 m	4.0 m	Max reach
Front	Side	Front	Side	Front	Side	Front	Side	Front	Side	Front	Side	Front	Side	Reach m
4.0
3.5							0.53	0.53
3.0									0.47	0.47
2.5									0.47	0.47	0.48	0.36
2.0							0.59	0.59	0.52	0.47	0.49	0.36
1.5					1.05	0.85	0.74	0.60	0.60	0.45	0.50	0.35
1.0							0.82	0.57	0.62	0.44	0.49	0.35			0.40	0.28	4.00
0.5					0.98	0.77	0.80	0.56	0.61	0.43	0.49	0.34
0					1.14	0.77	0.79	0.55	0.60	0.42	0.48	0.33
-0.5	1.08	1.08	1.28	1.28	1.14	0.77	0.79	0.55	0.60	0.42	0.48	0.33
-1.0	1.62	1.62	1.67	1.30	1.15	0.88	0.80	0.55	0.61	0.42
-1.5			1.27	1.27	0.91	0.80	0.67	0.56
-2.0					0.53	0.53

Tables

		STD. DIPPER 0.98 m	LONG DIPPER 1.33 m	STD. DIPPER 0.98 m	LONG DIPPER 1.33 m	STD. DIPPER 1.12 m	LONG DIPPER 1.37 m	STD. DIPPER 1.12 m	LONG DIPPER 1.37 m
A Min. swing radius	mm	1800	1900	2030	2070	1830	1880	2060	2080
B Max. digging reach at ground level	mm	4060	4400	4060	4400	4510	4770	4510	4770
C Max. digging reach	mm	4190	4520	4190	4520	4640	4890	4640	4890
D Max. dumping height	mm	2720	2950	2470	2650	3170	3380	2970	3170
E Max. vertical digging depth	mm	1790	2130	1790	2130	2320	2560	2320	2560
F Max. digging height	mm	3960	4190	3660	3850	4470	4690	4260	4470
G Max. digging depth	mm	2300	2650	2300	2650	2540	2790	2540	2790
X Dozer strokes (above)	mm	425	425	425	425	445	445	445	445
Y Dozer strokes (below)	mm	290	290	290	290	335	335	335	335
Bucket breakout force	kN	20		20		22		22
Dipperstick breakout force	kN	14			14	15		15
Bucket range	m3	0.035 -	0.088	0.035	- 0.088	0.035 - 0.088	0.035 -	0.088

Model	YANMAR 3TNV82A-SYB
Type	Water-cooled	4 cycle	direct injection	diesel engine*"
Cylinders	3
Bore and stroke	82 mm x 84 mm
Displacement	1330 cm3
Net output power (ISO 14396)	17 kW/23 hp @ 2200 rpm
Net maximum torque	80.1 Nm @ 1320 rpm
Starting motor	1.7 kW
Alternator	40 A / 12 V
Batteries	1 x 64 Ah

Fuel	28.0 litres
Coolant	3.8 litres
Engine oil	5.5 litres
Hydraulic system	25.0 litres
