CZ55 Cams excavator specs & dimensions (2006 - 2020)

Cams CZ55 is a mini excavator manufactured from 2006 to 2020. It has a weight of 5.4 tons and a track width of 400 mm. The transpo…

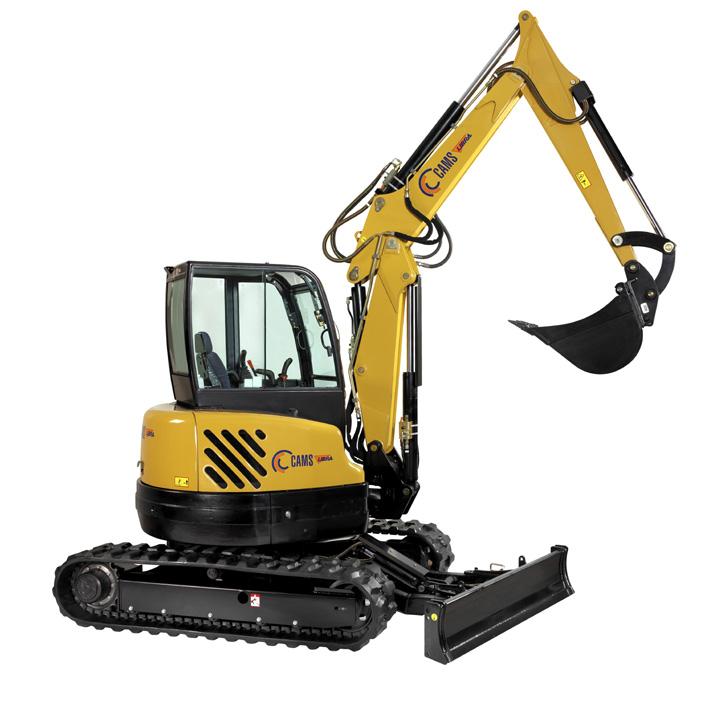

Cams CZ55 is a mini excavator manufactured from 2006 to 2020. It has a weight of 5.4 tons and a track width of 400 mm. The transport dimensions are 3.92 meters in length, 1.96 meters in width, and 2.56 meters in height. The bucket width is 0.6 meters with a capacity of 0.18 cubic meters. Special equipment includes a blade and rubber track.

Mini Excavators Cams CZ55

Technical specs - CZ55 Cams

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.4 t
Transport length
3.92 m
Transport width
1.96 m
Transport height
2.56 m
Bucket capacity
0.18 m³
Bucket width
0.6 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
6.06 m
Dredging depth
3.45 m
Tear-out force
38.5 kN
Model series
CZ
Engine manuf.
Kubota
Engine type
M2403
Engine power
34 kW
Displacement
4 l
Revolutions at max torque
2250 rpm

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Cams CZ55 FAQ

When was the Cams CZ55 manufactured?

The Cams CZ55 was manufactured from 2006 to 2020.

How much does the Cams CZ55 mini excavator weigh?

The Cams CZ55 mini excavator weighs 5.4 tons.

What are the transport dimensions of the Cams CZ55 mini excavator?

The Cams CZ55 mini excavator has a transport length of 3.92 meters, a transport width of 1.96 meters, and a transport height of 2.56 meters.

What is the track width of the Cams CZ55 mini excavator?

The Cams CZ55 mini excavator has a track width of 400 mm.

What is the excavation performance of the Cams CZ55 mini excavator?

The Cams CZ55 mini excavator has a dredging depth of 3.45 meters and a maximum horizontal reach of 6.06 meters.

What is the tear-out force of the Cams CZ55 mini excavator?

The Cams CZ55 mini excavator has a tear-out force of 38.5 kN.

What are the specifications of the primary work tool bucket on the Cams CZ55 mini excavator?

The primary work tool bucket of the Cams CZ55 has a capacity of 0.18 cubic meters and a width of 0.6 meters.

What operator safety and support features does the Cams CZ55 have?

The Cams CZ55 provides operator safety with a cabin for driver protection.

How much is a Cams CZ55 Mini excavator (2006u20132020) worth?

The residual value of the Cams CZ55 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
