CZ54 Cams excavator specs & dimensions (2021 - 2026)

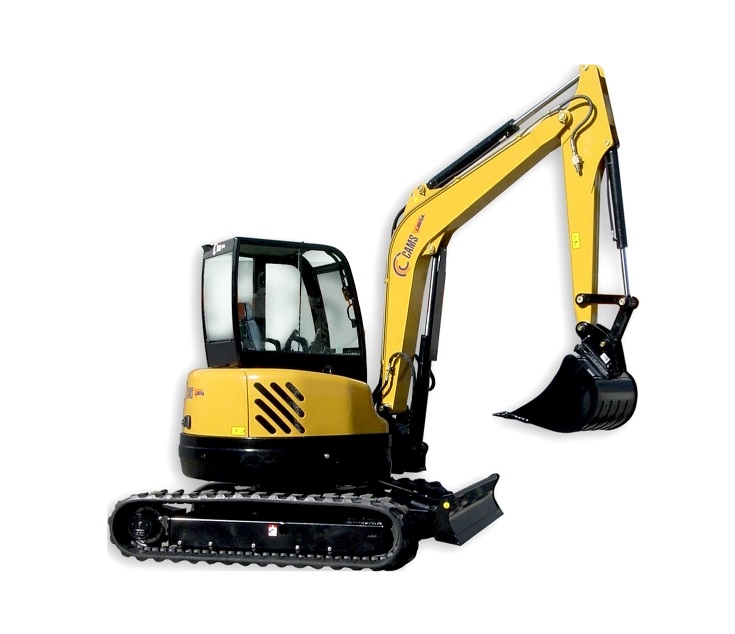

Cams CZ54 is a mini excavator manufactured since 2021. It has a weight of 5.2 tons and a track width of 400 mm. The transport dime…

Cams CZ54 is a mini excavator manufactured since 2021. It has a weight of 5.2 tons and a track width of 400 mm. The transport dimensions are 3.33 meters in length, 1.96 meters in width, and 2.56 meters in height. The bucket width is 0.6 meters with a capacity of 0.18 cubic meters. Special equipment includes a blade and rubber track.

Mini Excavators Cams CZ54

Technical specs - CZ54 Cams

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.2 t
Transport length
3.33 m
Transport width
1.96 m
Transport height
2.56 m
Bucket capacity
0.18 m³
Bucket width
0.6 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
6.4 m
Dredging depth
3.93 m
Tear-out force
38.5 kN
Model series
CZ
Engine manuf.
Doosan
Engine type
k.A.
Engine power
31.3 kW
Displacement
1.794 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Cams CZ54 FAQ

When was the Cams CZ54 manufactured?

The Cams CZ54 was first produced in 2021.

How much does the Cams CZ54 mini excavator weigh?

The Cams CZ54 mini excavator weighs 5.2 tons.

What are the transport dimensions of the Cams CZ54 mini excavator?

The Cams CZ54 mini excavator has a transport length of 3.33 meters, a transport width of 1.96 meters, and a transport height of 2.56 meters.

What is the track width of the Cams CZ54 mini excavator?

The Cams CZ54 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Cams CZ54 mini excavator?

The Cams CZ54 mini excavator has a dredging depth of 3.93 meters and a maximum horizontal reach of 6.4 meters.

What is the tear-out force of the Cams CZ54 mini excavator?

The Cams CZ54 mini excavator has a tear-out force of 38.5 kN.

What are the bucket specifications of the Cams CZ54 mini excavator?

The Cams CZ54 mini excavator has a bucket capacity of 0.18 cubic meters and a bucket width of 0.6 meters.

What operator safety feature does the Cams CZ54 mini excavator have?

The Cams CZ54 mini excavator is equipped with a cabin for driver protection.

How much is a Cams CZ54 Mini excavator (2021u20132025) worth?

The residual value of the Cams CZ54 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
