E55z Bobcat excavator specs & dimensions (2021 - 2026)

Bobcat E55z is a mini excavator manufactured since 2021, with a weight of 5.271 tons. It features a track width of 400 mm and has …

Bobcat E55z is a mini excavator manufactured since 2021, with a weight of 5.271 tons. It features a track width of 400 mm and has transport dimensions of 5.558 meters in length, 1.959 meters in width, and 2.566 meters in height. The machine offers a tear-out force of 30.99 kN, a dredging depth of 3.434 meters, and a maximum horizontal reach of 5.983 meters.

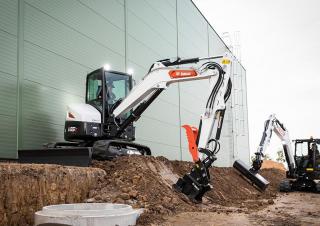

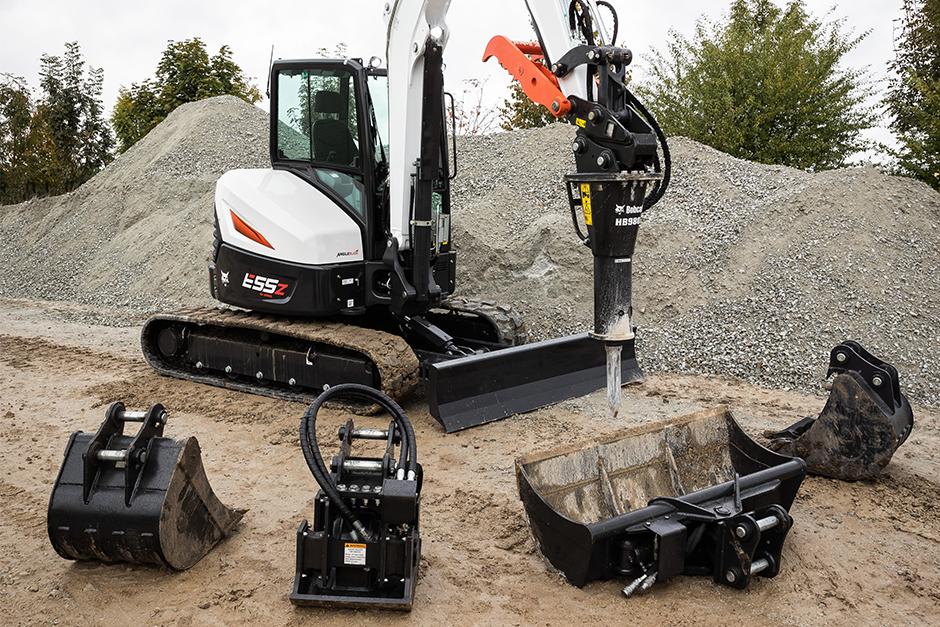

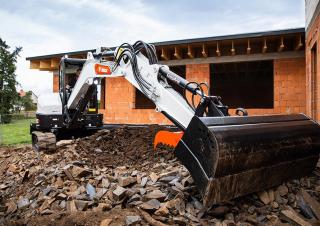

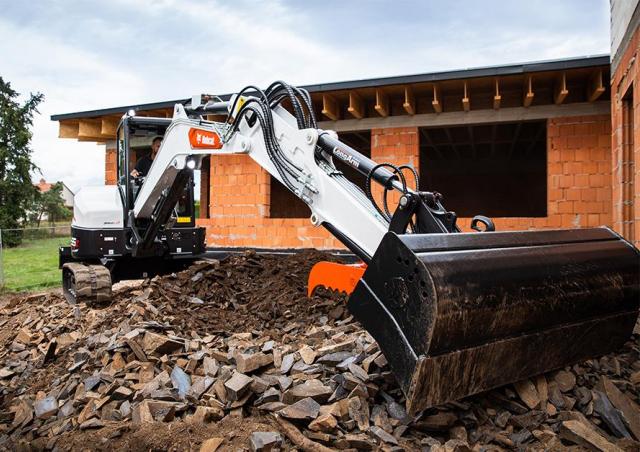

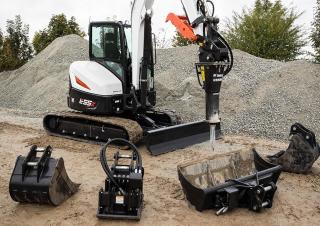

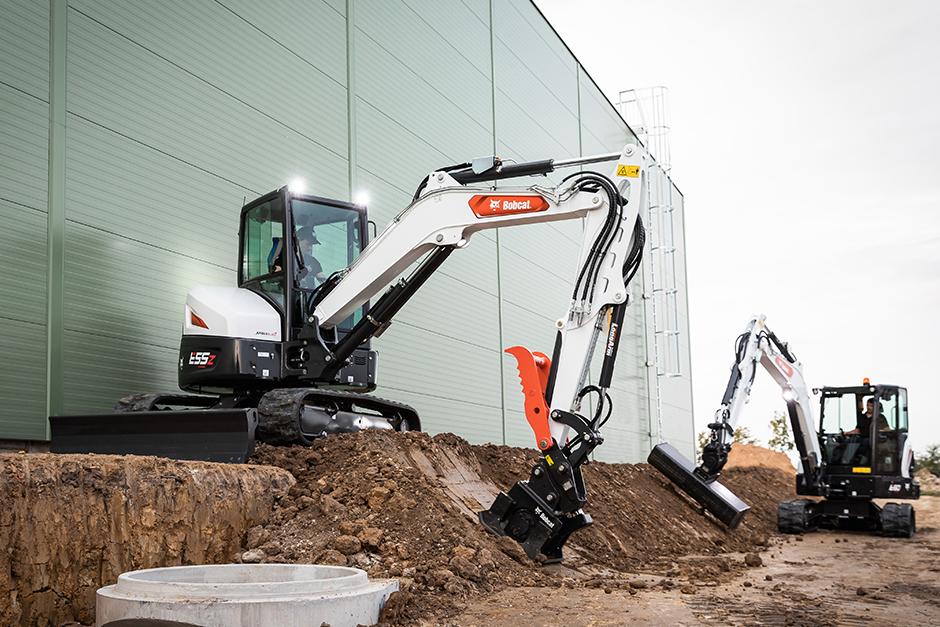

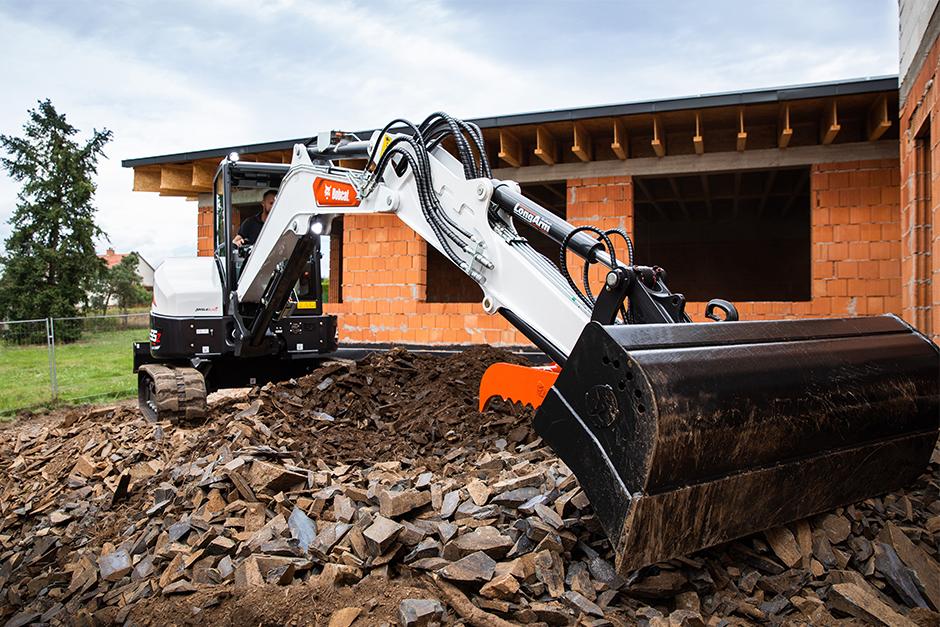

Mini Excavators Bobcat E55z
Mini Excavators Bobcat E55z
Mini Excavators Bobcat E55z
Mini Excavators Bobcat E55z
Mini Excavators Bobcat E55z
Mini Excavators Bobcat E55z

Visit Bobcat live at

Technical specs - E55z Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.271 t
Transport length
5.558 m
Transport width
1.959 m
Transport height
2.566 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
5.983 m
Dredging depth
3.434 m
Tear-out force
30.99 kN
Model series
E
Engine manuf.
Bobcat
Engine type
k.A.
Engine power
36.4 kW
Displacement
1.8 l
Max. torque
180 Nm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bobcat E55z FAQ

When was the Bobcat E55z manufactured?

The Bobcat E55z was first produced in 2021.

How much does the Bobcat E55z weigh?

The Bobcat E55z weighs 5.27 tons.

What are the transport dimensions of the Bobcat E55z mini excavator?

The Bobcat E55z has a transport length of 5.56 meters, a transport width of 1.96 meters, and a transport height of 2.57 meters.

What is the track width of the Bobcat E55z mini excavator?

The Bobcat E55z mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Bobcat E55z mini excavator?

The Bobcat E55z mini excavator has a dredging depth of 3.434 meters and a maximum horizontal reach of 5.983 meters.

What is the tear-out force of the Bobcat E55z mini excavator?

The Bobcat E55z mini excavator has a tear-out force of 30.99 kN.

What driver protection feature does the Bobcat E55z have?

The Bobcat E55z has driver protection in the form of a cabin.

How much is a Bobcat E55z Mini excavator (2021u20132025) worth?

The residual value of the Bobcat E55z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
