E55 Bobcat excavator specs & dimensions (2011 - 2024)

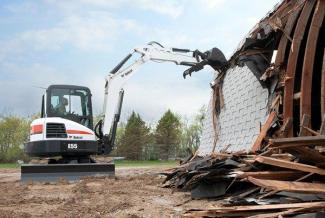

Bobcat E55 is a mini excavator manufactured since 2011, with a weight of 5.501 tons. It has a transport length of 5.194 meters, a …

Bobcat E55 is a mini excavator manufactured since 2011, with a weight of 5.501 tons. It has a transport length of 5.194 meters, a transport width of 1.96 meters, and a transport height of 2.532 meters. The machine features a tear-out force of 26.1 kN, a dredging depth of 3.923 meters, and a maximum horizontal reach of 6.083 meters. The bucket capacity ranges from 0.063 cubic meters to 0.28 cubic meters. Special equipment includes a blade.

Visit Bobcat live at

E55

Years of manufacture: 2011—2024

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - E55 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.501 t

Transport length: 5.194 m

Transport width: 1.96 m

Transport height: 2.532 m

Bucket capacity min.: 0.063 m³

Bucket capacity max.: 0.28 m³

Max. Reach horizontal: 6.083 m

Dredging depth: 3.923 m

Tear-out force: 26.1 kN

Model series: E

Engine manuf.: Kubota

Engine type: V2403-M-D1-TE3B-BC-4

Engine power: 35.4 kW

Displacement: 2.433 l

Revolutions at max torque: 1400 rpm

Max. torque: 179.5 Nm

No. of cylinders: 4

Emission level: TIER4

More technical details, like: bucket capacity, bucket width, track width, standard tyres, driver protection, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Bobcat E55 FAQ

When was the Bobcat E55 manufactured?

The Bobcat E55 was manufactured from 2011 to 2024.

How much does the Bobcat E55 weigh?

The Bobcat E55 weighs 5.5 tons.

What are the transport dimensions of the Bobcat E55 mini excavator?

The Bobcat E55 has a transport length of 5.19 meters, a transport width of 1.96 meters, and a transport height of 2.53 meters.

What are the excavation performance specifications of the Bobcat E55 mini excavator?

The Bobcat E55 mini excavator has a dredging depth of 3.923 meters and a maximum horizontal reach of 6.083 meters.

What is the tear-out force of the Bobcat E55 mini excavator?

The Bobcat E55 mini excavator has a tear-out force of 26.1 kN.

What are the bucket capacity specifications of the Bobcat E55 mini excavator?

The Bobcat E55 mini excavator has a bucket capacity ranging from 0.06 cubic meters to a maximum of 0.28 cubic meters.

How much is a Bobcat E55 Mini excavator (2011u20132024) worth?

The residual value of the Bobcat E55 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
