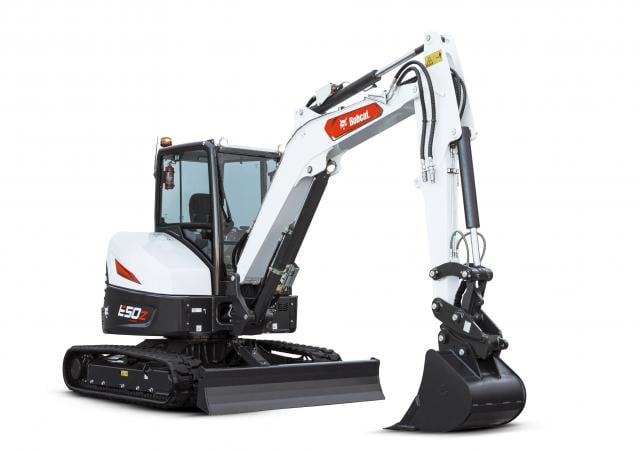

E50z Bobcat excavator specs & dimensions (2022 - 2026)

Bobcat E50z is a mini excavator manufactured since 2022, with a weight of 4.819 tons. It features a track width of 350 mm and a tr…

Bobcat E50z is a mini excavator manufactured since 2022, with a weight of 4.819 tons. It features a track width of 350 mm and a transport width of 1.96 meters. The dredging depth is 3.553 meters, and the maximum horizontal reach is 5.992 meters.

Mini Excavators Bobcat E50z

Visit Bobcat live at

Technical specs - E50z Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.819 t
Transport width
1.96 m
Track width
350 mm
Max. Reach horizontal
5.992 m
Dredging depth
3.553 m
Model series
E
Engine manuf.
Kubota
Engine type
V2403
Engine power
36.5 kW
No. of cylinders
4
Emission level
Interim Tier 4

More technical details, like: transport length, transport height, bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, tear-out force, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: transport length, transport height, bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, tear-out force, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bobcat E50z FAQ

When was the Bobcat E50z manufactured?

The Bobcat E50z was first produced in 2022.

How much does the Bobcat E50z weigh?

The Bobcat E50z weighs 4.82 tons.

What is the transport width of the Bobcat E50z mini excavator?

The transport width of the Bobcat E50z mini excavator is 1.96 meters.

What is the track width of the Bobcat E50z mini excavator?

The Bobcat E50z mini excavator has a track width of 350 mm.

What are the excavation performance specifications of the Bobcat E50z mini excavator?

The Bobcat E50z mini excavator has a dredging depth of 3.553 meters and a maximum horizontal reach of 5.992 meters.

How much is a Bobcat E50z Mini excavator (2022u20132025) worth?

The residual value of the Bobcat E50z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
