E26 Bobcat excavator specs & dimensions (2011 - 2020)

Model rating
9,00 / 10

Bobcat E26 is a mini excavator manufactured from 2011 to 2020. It has a weight of 2.56 tons and a track width of 300 mm. The trans…

Bobcat E26 is a mini excavator manufactured from 2011 to 2020. It has a weight of 2.56 tons and a track width of 300 mm. The transport dimensions are 4.33 meters in length, 1.51 meters in width, and 2.41 meters in height. The machine features a tear-out force of 15.8 kN, a dredging depth of 2.58 meters, and a maximum horizontal reach of 4.68 meters. It is equipped with a blade.

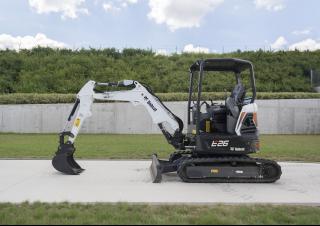

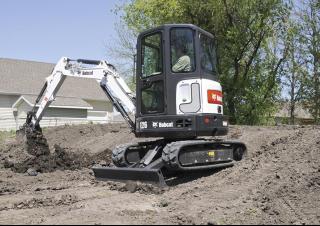

Mini Excavators Bobcat E26
Mini Excavators Bobcat E26
Mini Excavators Bobcat E26
Mini Excavators Bobcat E26
Mini Excavators Bobcat E26
Mini Excavators Bobcat E26
Mini Excavators Bobcat E26
Mini Excavators Bobcat E26
Mini Excavators Bobcat E26
Mini Excavators Bobcat E26

Visit Bobcat live at

Technical specs - E26 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.56 t
Transport length
4.33 m
Transport width
1.51 m
Transport height
2.41 m
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
4.68 m
Dredging depth
2.58 m
Tear-out force
15.8 kN
Model series
E
Engine manuf.
Kubota
Engine type
D1105-E2B-BCZ-2
Engine power
14.2 kW
Displacement
1.123 l
Revolutions at max torque
1400 rpm
Max. torque
65.8 Nm
No. of cylinders
3
Emission level
TIER4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bobcat E26 FAQ

When was the Bobcat E26 manufactured?

The Bobcat E26 was manufactured from 2011 to 2020.

How much does the Bobcat E26 mini excavator weigh?

The Bobcat E26 mini excavator weighs 2.56 tons.

What are the transport dimensions of the Bobcat E26 mini excavator?

The Bobcat E26 has a transport length of 4.33 meters, a transport width of 1.51 meters, and a transport height of 2.41 meters.

What is the track width of the Bobcat E26 mini excavator?

The Bobcat E26 mini excavator has a track width of 300 mm.

What is the excavation performance of the Bobcat E26 mini excavator?

The Bobcat E26 mini excavator has a dredging depth of 2.58 meters and a maximum horizontal reach of 4.68 meters.

What are the power ratings of the Bobcat E26 mini excavator?

The source data does not provide power rating information for the Bobcat E26 mini excavator.

What operator safety features does the Bobcat E26 have?

The Bobcat E26 has a cabin for driver protection.

How much is a Bobcat E26 Mini excavator (2011u20132020) worth?

The residual value of the Bobcat E26 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
