AC 20F Atlas Kompakt excavator specs & dimensions (2024 - 2026)

Weight: 1.94t – Transport length: 3.82m – Transport width: 0.99m – Transport height: 2.21m – Bucket capacity: 0.04m³ – Bucket capa…

Weight: 1.94t – Transport length: 3.82m – Transport width: 0.99m – Transport height: 2.21m – Bucket capacity: 0.04m³ – Bucket capacity max.: 0.04m³

Check out detailed specifications, information and technical data for Atlas Kompakt AC 20F excavator manufactured between 2024 - 2026. Get more in-depth insight with Atlas Kompakt AC 20F digger specifications. See information, like: Weight: 1.94t – Transport length: 3.82m – Transport width: 0.99m – Transport height: 2.21m – Bucket capacity: 0.04m³ – Bucket capacity max.: 0.04m³ and more.

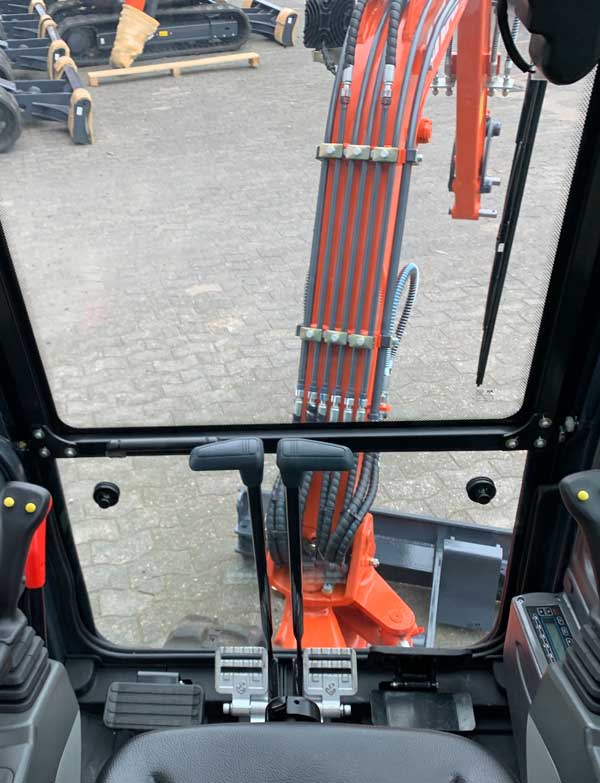

Mini Excavators Atlas Kompakt AC 20F
Mini Excavators Atlas Kompakt AC 20F
Mini Excavators Atlas Kompakt AC 20F
Mini Excavators Atlas Kompakt AC 20F
Mini Excavators Atlas Kompakt AC 20F
Mini Excavators Atlas Kompakt AC 20F

Technical specs - AC 20F Atlas Kompakt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.94 t
Transport length
3.82 m
Transport width
0.99 m
Transport height
2.21 m
Bucket capacity
0.04 m³
Bucket capacity max.
0.04 m³
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.945 m
Dredging depth
2.38 m
Tear-out force
9.83 kN
Model series
AC
Engine manuf.
Yanmar
Engine type
3TNV80F-SSSU
Engine power
13.4 kW
Displacement
1.267 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
US IV

More technical details, like: bucket capacity min., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Atlas Kompakt AC 20F FAQ

When was the Atlas Kompakt AC 20F manufactured?

The Atlas Kompakt AC 20F was first produced in 2024.

How much does the Atlas Kompakt AC 20F weigh?

The Atlas Kompakt AC 20F weighs 1.94 tons.

What are the transport dimensions of the Atlas Kompakt AC 20F mini excavator?

The Atlas Kompakt AC 20F has a transport length of 3.82 meters, a transport width of 0.99 meters, and a transport height of 2.21 meters.

What is the track width of the Atlas Kompakt AC 20F mini excavator?

The Atlas Kompakt AC 20F has a track width of 230 mm.

What is the excavation performance of the Atlas Kompakt AC 20F mini excavator?

The Atlas Kompakt AC 20F mini excavator has a dredging depth of 2.38 meters and a maximum horizontal reach of 3.945 meters.

What is the tear-out force of the Atlas Kompakt AC 20F mini excavator?

The Atlas Kompakt AC 20F mini excavator has a tear-out force of 9.83 kN.

What is the bucket capacity of the Atlas Kompakt AC 20F mini excavator?

The Atlas Kompakt AC 20F mini excavator has a bucket capacity of 0.04 cubic meters.

What operator safety feature does the Atlas Kompakt AC 20F have?

The Atlas Kompakt AC 20F is equipped with a cabin for driver protection.

How much is a Atlas Kompakt AC 20F Mini excavator (2024u20132025) worth?

The residual value of the Atlas Kompakt AC 20F depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
