AX 16-4 Airman excavator specs & dimensions (2010 - 2016)

Model rating
8,50 / 10

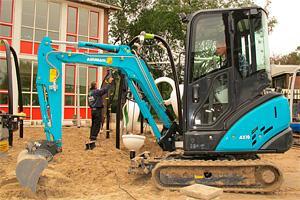

Airman AX 16-4 is a mini excavator manufactured from 2010 to 2016, with a weight of 1.77 tons. It features a track width of 230 mm…

Airman AX 16-4 is a mini excavator manufactured from 2010 to 2016, with a weight of 1.77 tons. It features a track width of 230 mm, a transport length of 3.79 meters, a transport width of 1.04 meters, and a transport height of 2.38 meters. The bucket width is 0.4 meters with a capacity of 0.044 cubic meters. Special equipment includes a blade and rubber track.

Mini Excavators Airman AX 16-4

Technical specs - AX 16-4 Airman

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.77 t
Transport length
3.79 m
Transport width
1.04 m
Transport height
2.38 m
Bucket capacity
0.044 m³
Bucket width
0.4 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.97 m
Dredging depth
2.37 m
Tear-out force
12.6 kN
Model series
AX
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
11.1 kW
Displacement
0.993 l
Max. torque
52.7 Nm
No. of cylinders
3

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Airman AX 16-4 FAQ

When was the Airman AX 16-4 manufactured?

The Airman AX 16-4 was manufactured from 2010 to 2016.

How much does the Airman AX 16-4 weigh?

The Airman AX 16-4 weighs 1.77 tons.

What are the transport dimensions of the Airman AX 16-4 mini excavator?

The Airman AX 16-4 has a transport length of 3.79 meters, a transport width of 1.04 meters, and a transport height of 2.38 meters.

What is the track width of the Airman AX 16-4 mini excavator's undercarriage?

The Airman AX 16-4 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Airman AX 16-4 mini excavator?

The Airman AX 16-4 mini excavator has a dredging depth of 2.37 meters and a maximum horizontal reach of 3.97 meters.

What is the tear-out force of the Airman AX 16-4 mini excavator?

The Airman AX 16-4 mini excavator has a tear-out force of 12.6 kN.

What are the specifications of the primary work tool bucket on the Airman AX 16-4 mini excavator?

The Airman AX 16-4 mini excavator has a bucket with a capacity of 0.044 cubic meters and a width of 0.4 meters.

What operator safety features does the Airman AX 16-4 have?

The Airman AX 16-4 has a cabin for driver protection.
