WY10B YTO excavator specs & Dimensions (2020 - 2026)

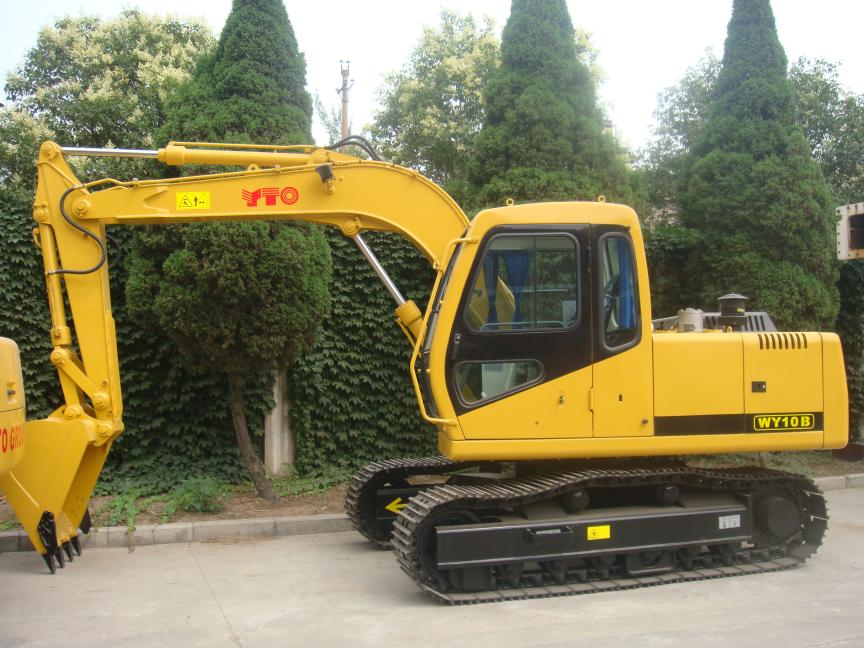

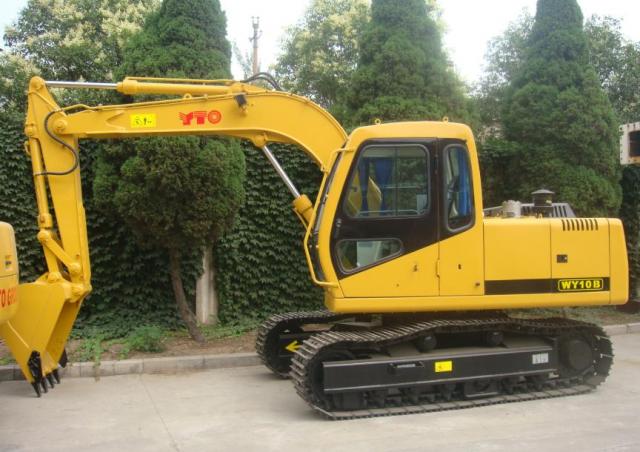

YTO WY10B is a crawler excavator manufactured since 2020, with a weight of 10.8 tons. It has a transport length of 6.76 meters, a …

YTO WY10B is a crawler excavator manufactured since 2020, with a weight of 10.8 tons. It has a transport length of 6.76 meters, a transport width of 2.41 meters, and a transport height of 2.771 meters. The excavator features a tear-out force of 53 kN, a dredging depth of 4.12 meters, and a maximum horizontal reach of 6.96 meters. Its bucket capacity is 0.45 cubic meters.

Crawler Excavators YTO WY10B

Technical specs - WY10B YTO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.8 t
Transport length
6.76 m
Transport width
2.41 m
Transport height
2.771 m
Bucket capacity
0.45 m³
Max. Reach horizontal
6.96 m
Dredging depth
4.12 m
Tear-out force
53 kN
Model series
WY
Engine manuf.
N/A
Engine type
LR4105ZG56-2
Engine power
60 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, track width, boom, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

YTO WY10B FAQ

When was the YTO WY10B manufactured?

The YTO WY10B was first produced in 2020.

How much does the YTO WY10B crawler excavator weigh?

The YTO WY10B crawler excavator weighs 10.8 tons.

What are the transport dimensions of the YTO WY10B crawler excavator?

The YTO WY10B crawler excavator has a transport length of 6.76 meters, a transport width of 2.41 meters, and a transport height of 2.77 meters.

What is the excavation performance of the YTO WY10B crawler excavator?

The YTO WY10B crawler excavator has a dredging depth of 4.12 meters and a maximum horizontal reach of 6.96 meters.

What is the tear-out force of the YTO WY10B crawler excavator, and is there any power rating information available?

The YTO WY10B crawler excavator has a tear-out force of 53 kN. However, no power rating information is provided in the available data.

What is the bucket capacity of the YTO WY10B crawler excavator?

The YTO WY10B crawler excavator has a bucket capacity of 0.45 cubic meters.
