E85-9 YTO excavator specs & Dimensions (2017 - 2026)

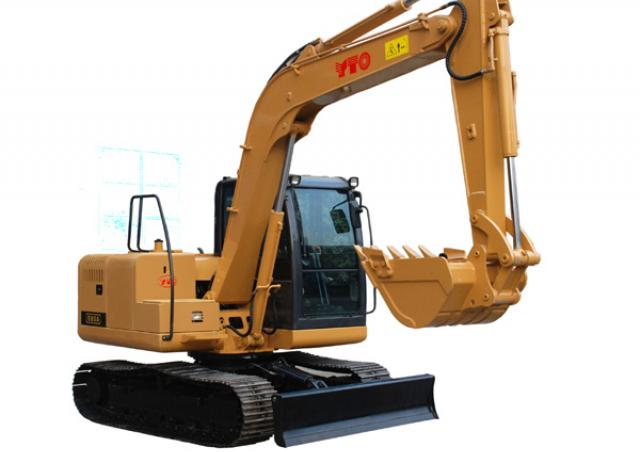

YTO E85-9 is a Crawler Excavator manufactured since 2017, with a weight of 8.1 t. It features a track width of 450 mm, a transport…

YTO E85-9 is a Crawler Excavator manufactured since 2017, with a weight of 8.1 t. It features a track width of 450 mm, a transport length of 6.45 m, a transport width of 2.21 m, and a transport height of 2.615 m. The excavator has a tear-out force of 53 kN, a dredging depth of 4.245 m, and a maximum horizontal reach of 6.675 m. It is equipped with a bucket capacity of 0.37 m³ and includes special equipment such as a blade.

Crawler Excavators YTO E85-9

Technical specs - E85-9 YTO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.1 t
Transport length
6.45 m
Transport width
2.21 m
Transport height
2.615 m
Bucket capacity
0.37 m³
Track width
450 mm
Max. Reach horizontal
6.675 m
Dredging depth
4.245 m
Tear-out force
53 kN
Model series
E
Engine manuf.
Yanmar
Engine type
4TNV98T-SFN
Engine power
53.1 kW
Displacement
3.319 l
Max. torque
312.7 Nm
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

YTO E85-9 FAQ

When was the YTO E85-9 manufactured?

The YTO E85-9 was first produced in 2017.

How much does the YTO E85-9 weigh?

The YTO E85-9 weighs 8.1 tons.

What are the transport dimensions of the YTO E85-9 crawler excavator?

The YTO E85-9 crawler excavator has a transport length of 6.45 meters, a transport width of 2.21 meters, and a transport height of 2.62 meters.

What is the track width of the YTO E85-9's undercarriage?

The YTO E85-9 has a track width of 450 mm.

What are the excavation performance specifications of the YTO E85-9?

The YTO E85-9 has a dredging depth of 4.245 meters and a maximum horizontal reach of 6.675 meters.

What is the tear-out force of the YTO E85-9?

The YTO E85-9 has a tear-out force of 53 kN.

What is the bucket capacity of the YTO E85-9 crawler excavator?

The YTO E85-9 crawler excavator has a bucket capacity of 0.37 cubic meters.

How much is a YTO E85-9 Crawler excavator (2017u20132025) worth?

The residual value of the YTO E85-9 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
