ViO80-1 Yanmar excavator specs & Dimensions (2019 - 2024)

Yanmar ViO80-1 is a crawler excavator manufactured since 2019, with a weight of 8.22 tons. It features a track width of 450 mm, a …

Yanmar ViO80-1 is a crawler excavator manufactured since 2019, with a weight of 8.22 tons. It features a track width of 450 mm, a transport length of 4.9 meters, a transport width of 2.27 meters, and a transport height of 2.68 meters. The machine has a tear-out force of 50.4 kN, a dredging depth of 4.4 meters, and a maximum horizontal reach of 7.14 meters. The bucket capacity is 0.28 cubic meters, and it comes equipped with a blade.

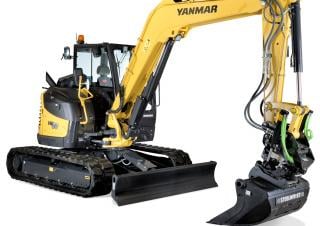

Crawler Excavators Yanmar ViO80-1

Technical specs - ViO80-1 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.22 t
Transport length
4.9 m
Transport width
2.27 m
Transport height
2.68 m
Bucket capacity
0.28 m³
Track width
450 mm
Max. Reach horizontal
7.14 m
Dredging depth
4.4 m
Tear-out force
50.4 kN
Model series
VIO
Engine manuf.
Yanmar
Engine type
4TNV98-ZWBV2
Engine power
42.4 kW
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar ViO80-1 FAQ

When was the Yanmar ViO80-1 manufactured?

The Yanmar ViO80-1 was manufactured from 2019 to 2024.

How much does the Yanmar ViO80-1 weigh?

The Yanmar ViO80-1 weighs 8.22 tons.

What are the transport dimensions of the Yanmar ViO80-1 crawler excavator?

The Yanmar ViO80-1 has a transport length of 4.9 meters, a transport width of 2.27 meters, and a transport height of 2.68 meters.

What is the track width of the Yanmar ViO80-1's undercarriage?

The Yanmar ViO80-1 has a track width of 450 mm.

What are the excavation performance specifications of the Yanmar ViO80-1?

The Yanmar ViO80-1 has a dredging depth of 4.4 meters and a maximum horizontal reach of 7.14 meters.

What is the tear-out force of the Yanmar ViO80-1?

The Yanmar ViO80-1 has a tear-out force of 50.4 kN.

What is the bucket capacity of the Yanmar ViO80-1 excavator?

The Yanmar ViO80-1 excavator has a bucket capacity of 0.28 cubic meters.
