SV100-7 Yanmar excavator specs & Dimensions (2025 - 2026)

Weight: 9.705t – Transport length: 6.87m – Transport width: 2.32m – Transport height: 2.67m – Track width: 485mm – Max. Reach hori…

Weight: 9.705t – Transport length: 6.87m – Transport width: 2.32m – Transport height: 2.67m – Track width: 485mm – Max. Reach horizontal: 7.19m

Check out detailed specifications, information and technical data for Yanmar SV100-7 excavator manufactured between 2025 - 2026. Get more in-depth insight with Yanmar SV100-7 digger specifications. See information, like: Weight: 9.705t – Transport length: 6.87m – Transport width: 2.32m – Transport height: 2.67m – Track width: 485mm – Max. Reach horizontal: 7.19m and more.

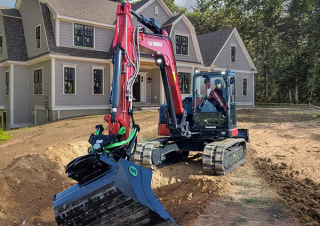

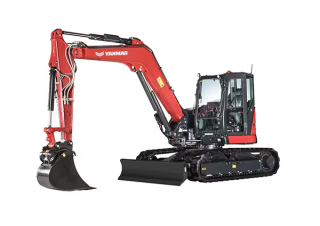

Crawler Excavators Yanmar SV100-7
Crawler Excavators Yanmar SV100-7
Crawler Excavators Yanmar SV100-7
Crawler Excavators Yanmar SV100-7
Crawler Excavators Yanmar SV100-7
Crawler Excavators Yanmar SV100-7
Crawler Excavators Yanmar SV100-7
Crawler Excavators Yanmar SV100-7
Crawler Excavators Yanmar SV100-7
Crawler Excavators Yanmar SV100-7

Technical specs - SV100-7 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.705 t
Transport length
6.87 m
Transport width
2.32 m
Transport height
2.67 m
Track width
485 mm
Max. Reach horizontal
7.19 m
Dredging depth
4.57 m
Tear-out force
68.4 kN
Model series
SV
Engine manuf.
Yanmar
Engine type
4TNV98CT-VBV2
Engine power
51 kW
Displacement
3.318 l
Revolutions at max torque
2100 rpm
Max. torque
308 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar SV100-7 FAQ

When was the Yanmar SV100-7 manufactured?

The Yanmar SV100-7 was first produced in 2025.

How much does the Yanmar SV100-7 weigh?

The Yanmar SV100-7 weighs 9.705 tons.

What are the transport dimensions of the Yanmar SV100-7?

The Yanmar SV100-7 has a transport length of 6.87 meters, a transport width of 2.32 meters, and a transport height of 2.67 meters.

What is the track width of the Yanmar SV100-7's undercarriage?

The Yanmar SV100-7 has a track width of 485 mm.

What are the excavation performance specifications of the Yanmar SV100-7?

The Yanmar SV100-7 has a dredging depth of 4.57 meters and a maximum horizontal reach of 7.19 meters.

What power rating information is available for the Yanmar SV100-7?

There is no power rating data available for the Yanmar SV100-7 in the provided information.

How much is a Yanmar SV100-7 Crawler excavator (2025u20132025) worth?

The residual value of the Yanmar SV100-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
