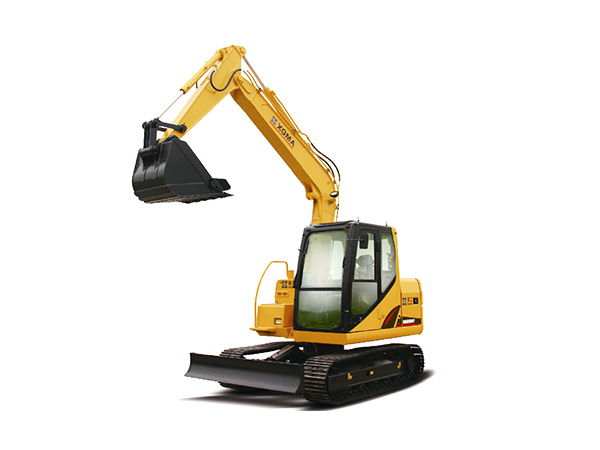

XG809F XGMA excavator specs & Dimensions (2017 - 2026)

XGMA XG809F is a Crawler Excavator manufactured since 2017. It has a weight of 8.1 tons, a transport length of 6.08 meters, a tran…

XGMA XG809F is a Crawler Excavator manufactured since 2017. It has a weight of 8.1 tons, a transport length of 6.08 meters, a transport width of 2.222 meters, and a transport height of 2.6 meters. The machine features a tear-out force of 55 kN, a dredging depth of 4.16 meters, and a maximum horizontal reach of 6.325 meters. The bucket capacity is 0.35 cubic meters.

Crawler Excavators XGMA XG809F

Technical specs - XG809F XGMA

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.1 t
Transport length
6.08 m
Transport width
2.222 m
Transport height
2.6 m
Bucket capacity
0.35 m³
Max. Reach horizontal
6.325 m
Dredging depth
4.16 m
Tear-out force
55 kN
Model series
F
Engine manuf.
Kubota
Engine type
V3800DI-T-E3B
Engine power
61.6 kW
Displacement
3.769 l
Revolutions at max torque
1600 rpm
Max. torque
310 Nm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, track width, boom, bucket width, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

XGMA XG809F FAQ

When was the XGMA XG809F manufactured?

The XGMA XG809F was first produced in 2017.

How much does the XGMA XG809F crawler excavator weigh?

The XGMA XG809F crawler excavator weighs 8.1 tons.

What are the transport dimensions of the XGMA XG809F crawler excavator?

The XGMA XG809F has a transport length of 6.08 meters, a transport width of 2.22 meters, and a transport height of 2.6 meters.

What are the dredging depth and maximum horizontal reach of the XGMA XG809F crawler excavator?

The XGMA XG809F crawler excavator has a dredging depth of 4.16 meters and a maximum horizontal reach of 6.325 meters.

What power rating information is available for the XGMA XG809F?

There is no power rating information available for the XGMA XG809F in the provided data.

What is the bucket capacity of the XGMA XG809F crawler excavator?

The bucket capacity of the XGMA XG809F crawler excavator is 0.35 cubic meters.

How much is a XGMA XG809F Crawler excavator (2017u20132025) worth?

The residual value of the XGMA XG809F depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
