XE90U XCMG excavator specs & Dimensions (2025 - 2026)

Weight: 9.5t – Bucket capacity: 0.33m³ – Boom: MB – Tear-out force: 64kN – Model series: XE – Engine manuf.: Kubota…

Weight: 9.5t – Bucket capacity: 0.33m³ – Boom: MB – Tear-out force: 64kN – Model series: XE – Engine manuf.: Kubota

Check out detailed specifications, information and technical data for XCMG XE90U excavator manufactured between 2025 - 2026. Get more in-depth insight with XCMG XE90U digger specifications. See information, like: Weight: 9.5t – Bucket capacity: 0.33m³ – Boom: MB – Tear-out force: 64kN – Model series: XE – Engine manuf.: Kubota and more.

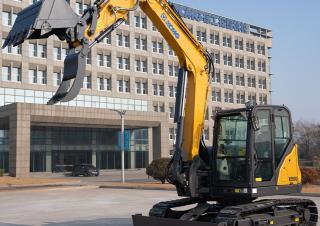

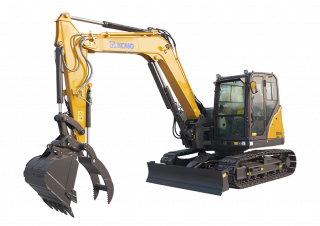

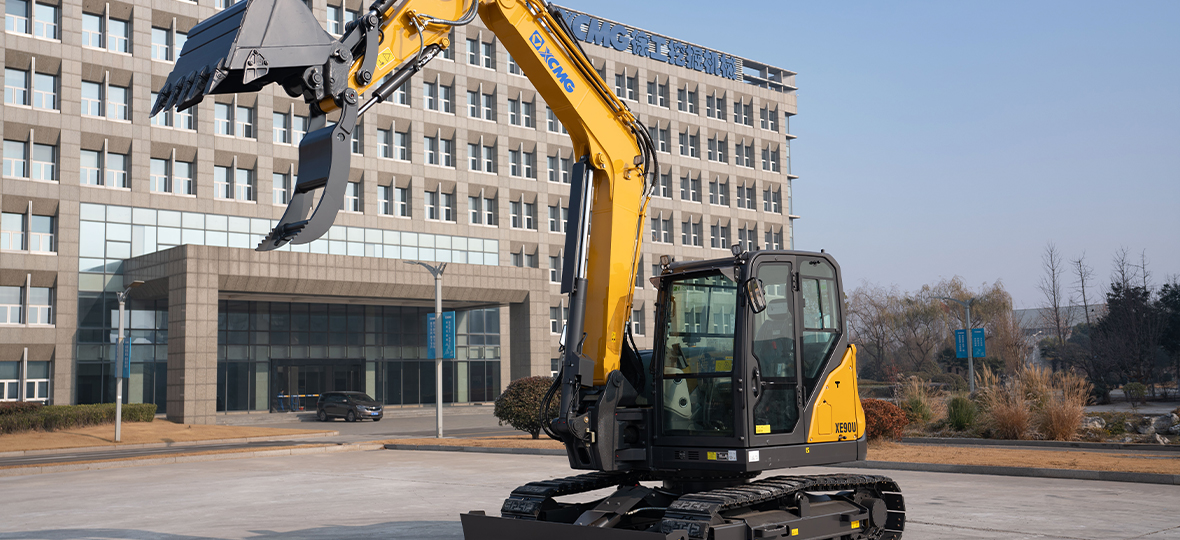

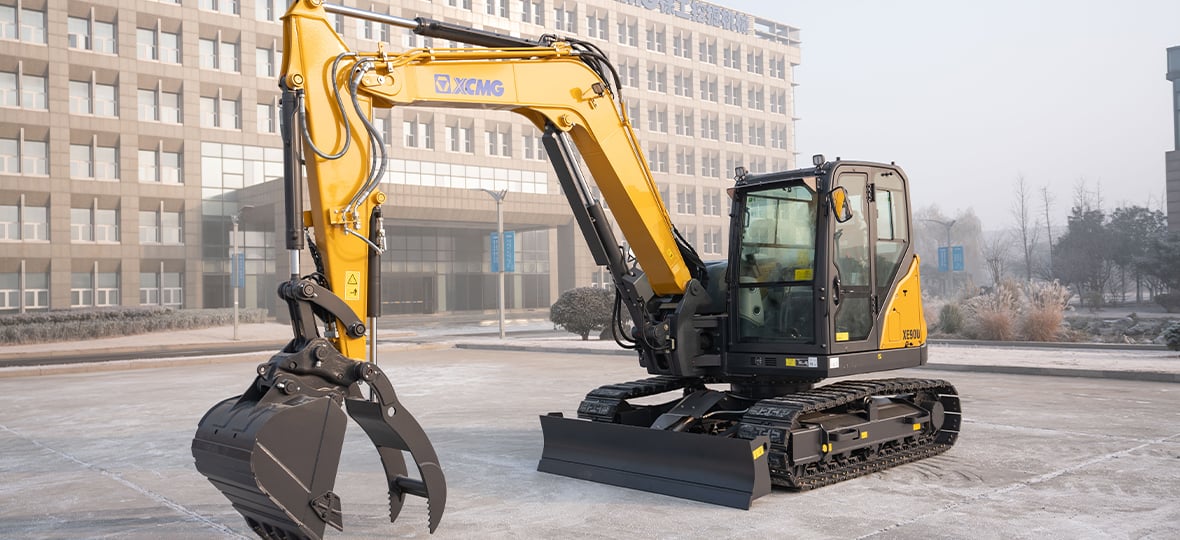

Crawler Excavators XCMG XE90U
Crawler Excavators XCMG XE90U
Crawler Excavators XCMG XE90U
Crawler Excavators XCMG XE90U
Crawler Excavators XCMG XE90U
Crawler Excavators XCMG XE90U

Visit XCMG live at

Technical specs - XE90U XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.5 t
Bucket capacity
0.33 m³
Boom
MB
Tear-out force
64 kN
Model series
XE
Engine manuf.
Kubota
Engine type
V3307CRTE5
Engine power
54.6 kW
Displacement
3.3 l
Revolutions at max torque
2200 rpm
Max. torque
265/1500 Nm
No. of cylinders
4
Cylinder bore x stroke
94x120 mm
Emission level
V

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., undercarriage, track width, max. reach horizontal, dredging depth, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
