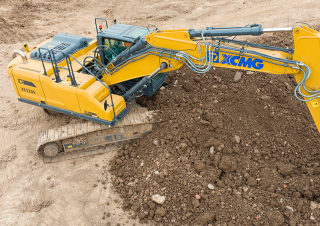

Crawler Excavators XCMG XE220E Double Boom
Crawler Excavators XCMG XE220E Double Boom
Crawler Excavators XCMG XE220E Double Boom
Crawler Excavators XCMG XE220E Double Boom
Crawler Excavators XCMG XE220E Double Boom
Crawler Excavators XCMG XE220E Double Boom
Crawler Excavators XCMG XE220E Double Boom
Crawler Excavators XCMG XE220E Double Boom

Visit XCMG live at

Technical specs - XE220E Double Boom XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24 t
Bucket capacity
1.05 m³
Tear-out force
149 kN
Model series
XE
Engine manuf.
Cummins
Engine type
B6.7
Engine power
129 kW
Displacement
6.7 l
Revolutions at max torque
2200 rpm
Max. torque
881/1300 Nm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
V/Tier 4 Final

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., undercarriage, track width, boom, max. reach horizontal, dredging depth, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
