XE215D XCMG excavator specs & Dimensions (2026 - 2026)

Weight: 21.9t – Bucket capacity: 1m³ – Boom: MB – Max. Reach horizontal: 5.715m – Dredging depth: 6.68m – Model series: XE…

Weight: 21.9t – Bucket capacity: 1m³ – Boom: MB – Max. Reach horizontal: 5.715m – Dredging depth: 6.68m – Model series: XE

Check out detailed specifications, information and technical data for XCMG XE215D excavator manufactured between 2026 - 2026. Get more in-depth insight with XCMG XE215D digger specifications. See information, like: Weight: 21.9t – Bucket capacity: 1m³ – Boom: MB – Max. Reach horizontal: 5.715m – Dredging depth: 6.68m – Model series: XE and more.

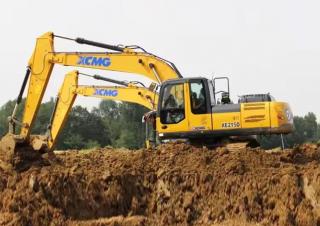

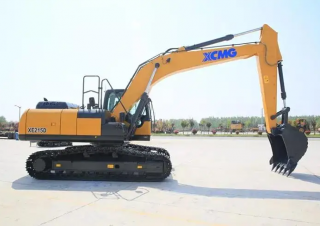

Crawler Excavators XCMG XE215D
Crawler Excavators XCMG XE215D
Crawler Excavators XCMG XE215D
Crawler Excavators XCMG XE215D
Crawler Excavators XCMG XE215D
Crawler Excavators XCMG XE215D
Crawler Excavators XCMG XE215D
Crawler Excavators XCMG XE215D

Visit XCMG live at

Technical specs - XE215D XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.9 t
Bucket capacity
1 m³
Boom
MB
Max. Reach horizontal
5.715 m
Dredging depth
6.68 m
Model series
XE
Engine manuf.
Cummins
Engine type
QSB7
Engine power
135 kW
Displacement
6.7 l
Revolutions at max torque
2050 rpm
Max. torque
740/1250 Nm
No. of cylinders
6

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., undercarriage, track width, tear-out force, bucket width, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
