XE215CLL XCMG excavator specs & Dimensions (2026 - 2026)

Weight: 22.35t – Bucket capacity: 0.5m³ – Boom: MB – Max. Reach horizontal: 15.394m – Dredging depth: 11.69m – Tear-out force: 78.…

Weight: 22.35t – Bucket capacity: 0.5m³ – Boom: MB – Max. Reach horizontal: 15.394m – Dredging depth: 11.69m – Tear-out force: 78.7kN

Check out detailed specifications, information and technical data for XCMG XE215CLL excavator manufactured between 2026 - 2026. Get more in-depth insight with XCMG XE215CLL digger specifications. See information, like: Weight: 22.35t – Bucket capacity: 0.5m³ – Boom: MB – Max. Reach horizontal: 15.394m – Dredging depth: 11.69m – Tear-out force: 78.7kN and more.

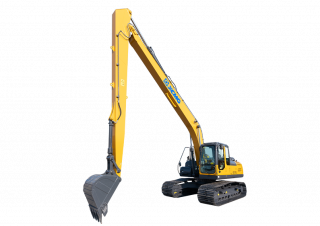

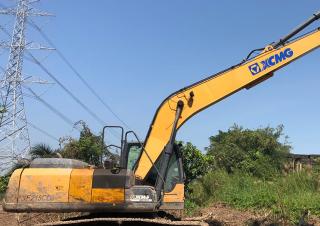

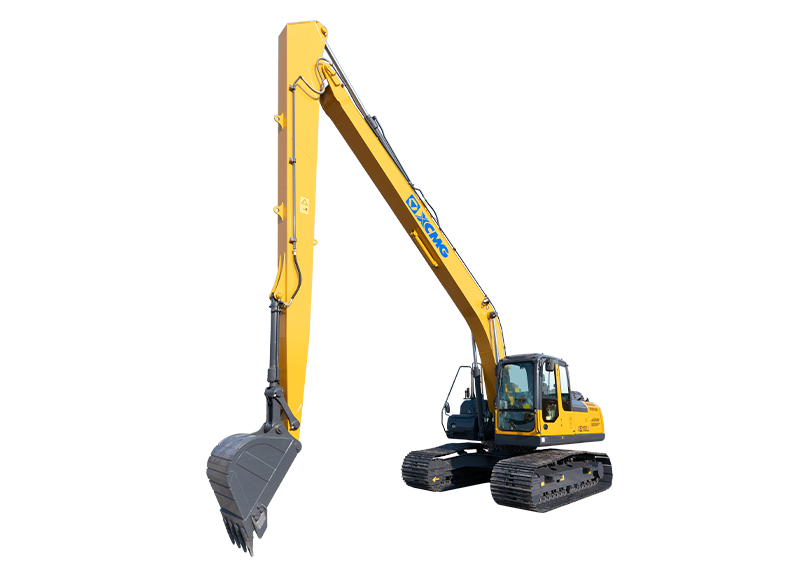

Crawler Excavators XCMG XE215CLL
Crawler Excavators XCMG XE215CLL
Crawler Excavators XCMG XE215CLL
Crawler Excavators XCMG XE215CLL

Visit XCMG live at

Technical specs - XE215CLL XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.35 t
Bucket capacity
0.5 m³
Boom
MB
Max. Reach horizontal
15.394 m
Dredging depth
11.69 m
Tear-out force
78.7 kN
Model series
XE
Engine manuf.
Isuzu
Engine type
CC-6BG1TRP
Engine power
128.5 kW
Displacement
6.494 l
Revolutions at max torque
2100 rpm
Max. torque
551/1600 Nm
No. of cylinders
6

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., undercarriage, track width, bucket width, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
