ET65 Wacker Neuson excavator specs & Dimensions (2020 - 2026)

Weight: 6.29t – Transport length: 6.14m – Transport width: 1.95m – Transport height: 2.48m – Track width: 400mm – Boom: MB…

Weight: 6.29t – Transport length: 6.14m – Transport width: 1.95m – Transport height: 2.48m – Track width: 400mm – Boom: MB

Check out detailed specifications, information and technical data for Wacker Neuson ET65 excavator manufactured between 2020 - 2026. Get more in-depth insight with Wacker Neuson ET65 digger specifications. See information, like: Weight: 6.29t – Transport length: 6.14m – Transport width: 1.95m – Transport height: 2.48m – Track width: 400mm – Boom: MB and more.

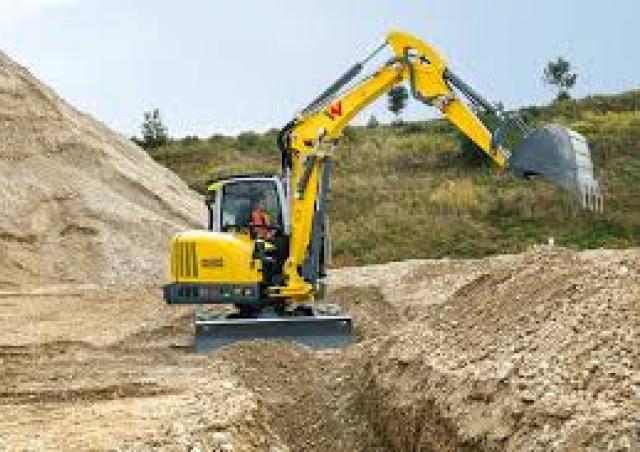

Crawler Excavators Wacker Neuson ET65

Visit Wacker Neuson live at

Technical specs - ET65 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.29 t
Transport length
6.14 m
Transport width
1.95 m
Transport height
2.48 m
Track width
400 mm
Boom
MB
Max. Reach horizontal
6.08 m
Dredging depth
3.83 m
Tear-out force
28 kN
Model series
ET
Engine manuf.
Perkins
Engine type
404F-E22TA
Engine power
39.2 kW
Displacement
2.216 l
Revolutions at max torque
2000 rpm
No. of cylinders
4
Emission level
IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Wacker Neuson ET65 FAQ

When was the Wacker Neuson ET65 manufactured?

The Wacker Neuson ET65 was first produced in 2020.

How much does the Wacker Neuson ET65 weigh?

The Wacker Neuson ET65 weighs 6.29 tons.

What are the transport dimensions of the Wacker Neuson ET65?

The Wacker Neuson ET65 has a transport length of 6.14 meters, a transport width of 1.95 meters, and a transport height of 2.48 meters.

What is the track width of the Wacker Neuson ET65's undercarriage?

The Wacker Neuson ET65 has a track width of 400 mm.

What are the excavation performance specifications of the Wacker Neuson ET65?

The Wacker Neuson ET65 has a dredging depth of 3.83 meters, a maximum horizontal reach of 6.08 meters, and is equipped with a Monobloc boom.

What power rating information is available for the Wacker Neuson ET65?

There is no power rating information available for the Wacker Neuson ET65 in the provided data.

How much is a Wacker Neuson ET65 Crawler excavator (2020u20132025) worth?

The residual value of the Wacker Neuson ET65 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
