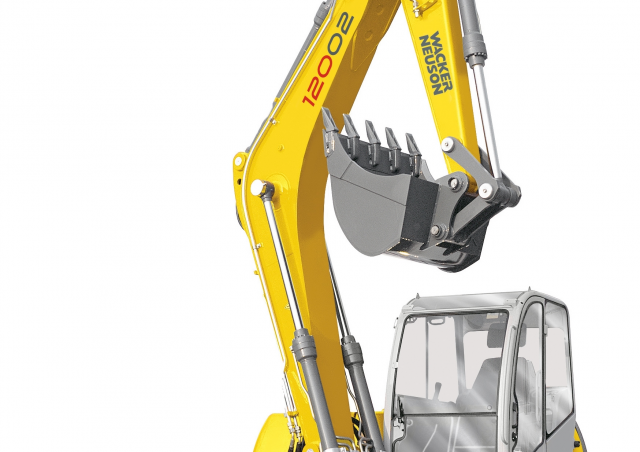

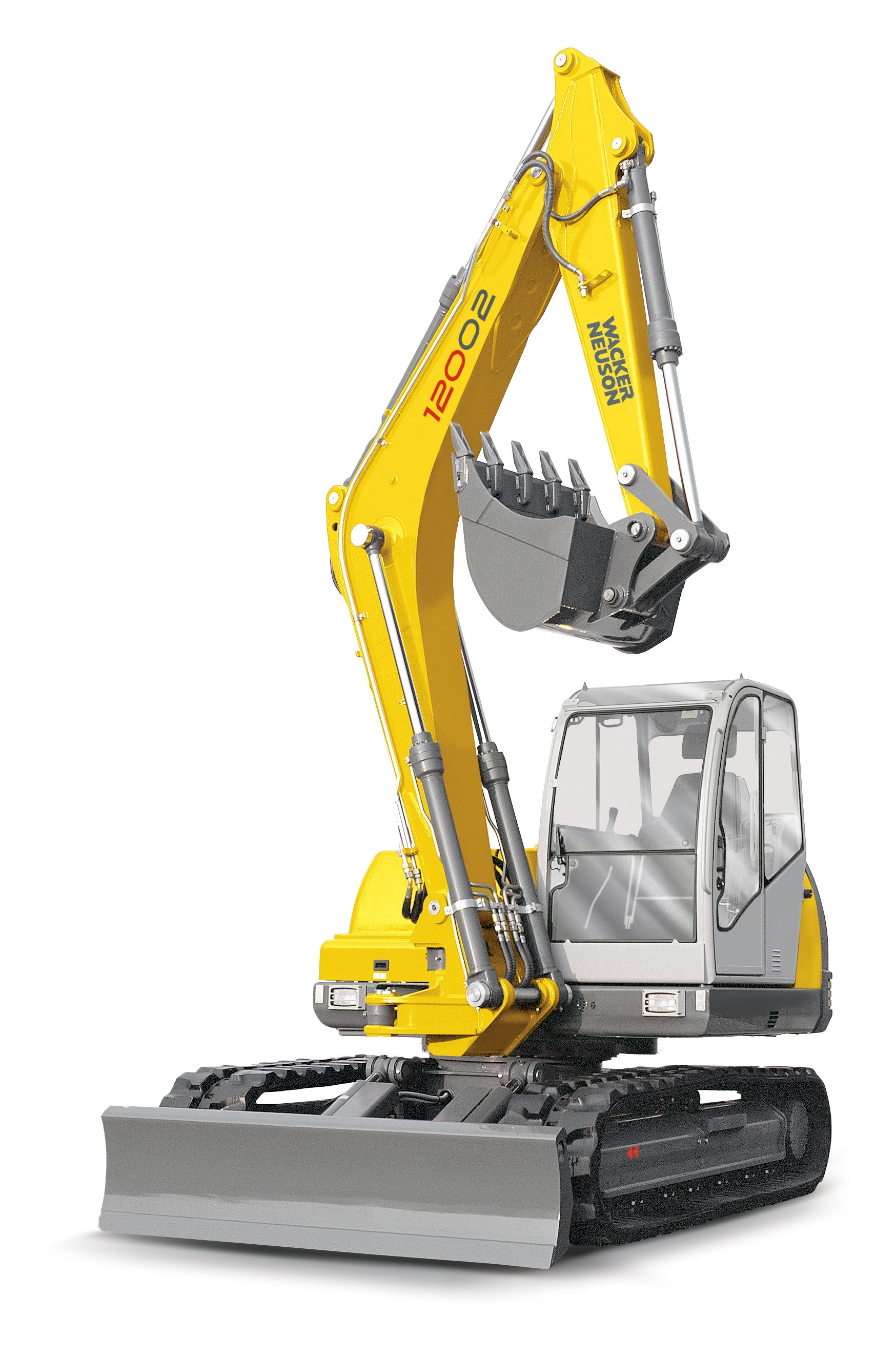

12002 Wacker Neuson excavator specs & Dimensions (2008 - 2011)

Model rating
8,50 / 10

Wacker Neuson 12002 is a Crawler Excavator manufactured from 2008 to 2011, with a weight of 11.52 tons. It features a track width …

Wacker Neuson 12002 is a Crawler Excavator manufactured from 2008 to 2011, with a weight of 11.52 tons. It features a track width of 500 mm, a transport length of 7.08 meters, a transport width of 2.4 meters, and a transport height of 2.79 meters. The excavator is equipped with a blade as special equipment.

Crawler Excavators Wacker Neuson 12002

Visit Wacker Neuson live at

Technical specs - 12002 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.52 t
Transport length
7.08 m
Transport width
2.4 m
Transport height
2.79 m
Bucket capacity
0.36 m³
Undercarriage
SL
Track width
500 mm
Boom
MB
Max. Reach horizontal
7.76 m
Engine manuf.
John Deere
Engine type
4045TF270
Engine power
74 kW
Displacement
4.541 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Wacker Neuson 12002 FAQ

When was the Wacker Neuson 12002 manufactured?

The Wacker Neuson 12002 was manufactured from 2008 to 2011.

How much does the Wacker Neuson 12002 weigh?

The Wacker Neuson 12002 weighs 11.52 tons.

What are the transport dimensions of the Wacker Neuson 12002 crawler excavator?

The Wacker Neuson 12002 has a transport length of 7.08 meters, a transport width of 2.4 meters, and a transport height of 2.79 meters.

What are the undercarriage specifications of the Wacker Neuson 12002?

The Wacker Neuson 12002 has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Wacker Neuson 12002?

The Wacker Neuson 12002 has a maximum horizontal reach of 7.76 meters and is equipped with a monobloc boom.

What is the bucket capacity of the Wacker Neuson 12002?

The bucket capacity of the Wacker Neuson 12002 is 0.36 cubic meters.

How much is a Wacker Neuson 12002 Crawler excavator (2008u20132011) worth?

The residual value of the Wacker Neuson 12002 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
