EC220ELR Volvo excavator specs & Dimensions (2016 - 2018)

Volvo EC220ELR is a Crawler Excavator manufactured from 2016 to 2018, with a weight of 23.69 tons. It features a track width of 80…

Volvo EC220ELR is a Crawler Excavator manufactured from 2016 to 2018, with a weight of 23.69 tons. It features a track width of 800 mm, a transport length of 12.88 meters, a transport width of 3.19 meters, and a transport height of 2.95 meters. The machine has a tear-out force of 68 kN, a dredging depth of 12.1 meters, and a maximum horizontal reach of 15.8 meters. It is equipped with air conditioning and a diesel particulate filter.

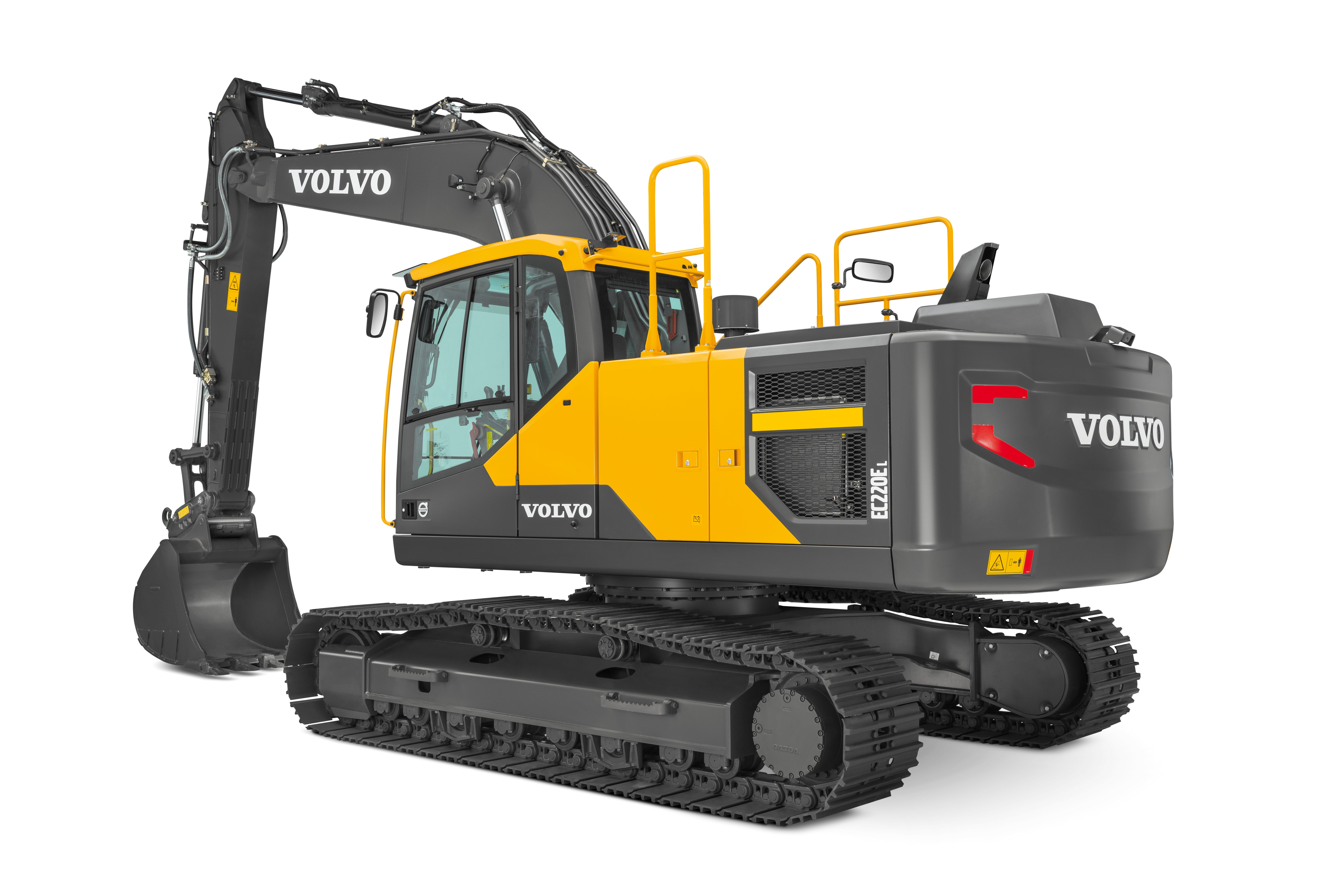

Crawler Excavators Volvo EC220ELR
Crawler Excavators Volvo EC220ELR
Crawler Excavators Volvo EC220ELR
Crawler Excavators Volvo EC220ELR

Visit Volvo live at

Technical specs - EC220ELR Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.69 t
Transport length
12.88 m
Transport width
3.19 m
Transport height
2.95 m
Track width
800 mm
Boom
MB
Max. Reach horizontal
15.8 m
Dredging depth
12.1 m
Tear-out force
68 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D6J
Engine power
129 kW
Displacement
5.7 l
Revolutions at max torque
1800 rpm
Max. torque
850/1350 Nm
No. of cylinders
6
Cylinder bore x stroke
98/126 mm
Emission level
4/Tier 4 f

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC220ELR FAQ

When was the Volvo EC220ELR manufactured?

The Volvo EC220ELR was manufactured from 2016 to 2018.

How much does the Volvo EC220ELR weigh?

The Volvo EC220ELR weighs 23.69 tons.

What are the transport dimensions of the Volvo EC220ELR crawler excavator?

The Volvo EC220ELR has a transport length of 12.88 meters, a transport width of 3.19 meters, and a transport height of 2.95 meters.

What is the fuel consumption range of the Volvo EC220ELR?

The Volvo EC220ELR has a fuel consumption range of 10 to 20 liters per hour.

What is the track width of the Volvo EC220ELR's undercarriage?

The Volvo EC220ELR has a track width of 800 mm.

What are the excavation performance specifications of the Volvo EC220ELR?

The Volvo EC220ELR has a dredging depth of 12.1 meters, a maximum horizontal reach of 15.8 meters, and is equipped with a monobloc boom.

What are the power ratings of the Volvo EC220ELR?

The source data does not provide any power ratings for the Volvo EC220ELR.

How much is a Volvo EC220ELR Crawler excavator (2016u20132018) worth?

The residual value of the Volvo EC220ELR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
