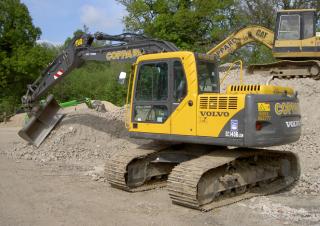

EC140B Volvo excavator specs & Dimensions (2016 - 2018)

Volvo EC140B is a Crawler Excavator manufactured from 2016 to 2018, with a weight of 13.39 tons. It features a track width of 500 …

Volvo EC140B is a Crawler Excavator manufactured from 2016 to 2018, with a weight of 13.39 tons. It features a track width of 500 mm, a transport length of 7.7 meters, a transport width of 2.59 meters, and a transport height of 2.77 meters. The excavator has a tear-out force of 87.3 kN, a dredging depth of 5.13 meters, a maximum horizontal reach of 7.96 meters, and a bucket capacity of 0.975 cubic meters.

Crawler Excavators Volvo EC140B
Crawler Excavators Volvo EC140B
Crawler Excavators Volvo EC140B
Crawler Excavators Volvo EC140B
Crawler Excavators Volvo EC140B
Crawler Excavators Volvo EC140B

Visit Volvo live at

Technical specs - EC140B Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.39 t
Transport length
7.7 m
Transport width
2.59 m
Transport height
2.77 m
Bucket capacity
0.975 m³
Undercarriage
LC
Track width
500 mm
Boom
MB
Max. Reach horizontal
7.96 m
Dredging depth
5.13 m
Tear-out force
87.3 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D 4 D-EAE 1
Engine power
69 kW
Displacement
4 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC140B FAQ

When was the Volvo EC140B manufactured?

The Volvo EC140B was manufactured from 2016 to 2018.

How much does the Volvo EC140B weigh?

The Volvo EC140B weighs 13.39 tons.

What are the transport dimensions of the Volvo EC140B crawler excavator?

The Volvo EC140B has a transport length of 7.7 meters, a transport width of 2.59 meters, and a transport height of 2.77 meters.

What are the undercarriage specifications of the Volvo EC140B?

The Volvo EC140B has a long undercarriage and a track width of 500 mm.

What are the excavation performance specifications of the Volvo EC140B?

The Volvo EC140B has a dredging depth of 5.13 meters, a maximum horizontal reach of 7.96 meters, and is equipped with a monobloc boom.

What are the power ratings of the Volvo EC140B?

The source data does not provide power ratings for the Volvo EC140B.

What is the bucket capacity of the Volvo EC140B crawler excavator?

The bucket capacity of the Volvo EC140B crawler excavator is 0.975 cubic meters.

How much is a Volvo EC140B Crawler excavator (2016u20132018) worth?

The residual value of the Volvo EC140B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
