TB 175 Takeuchi excavator specs & Dimensions (2005 - 2011)

Model rating
7,00 / 10

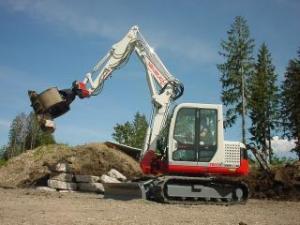

Takeuchi TB 175 is a crawler excavator manufactured from 2005 to 2011, with a weight of 7.2 tons and a track width of 450 mm. It h…

Takeuchi TB 175 is a crawler excavator manufactured from 2005 to 2011, with a weight of 7.2 tons and a track width of 450 mm. It has a tear-out force of 47 kN and comes equipped with air conditioning, a blade, and an overload alert system.

Crawler Excavators Takeuchi TB 175

Technical specs - TB 175 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.2 t
Bucket capacity
0.25 m³
Track width
450 mm
Boom
MB
Max. Reach horizontal
5.255 m
Dredging depth
4.59 m
Tear-out force
47 kN
Model series
TB
Engine manuf.
Yanmar
Engine type
4TNV98
Engine power
43.5 kW

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Click and see the specifications of Takeuchi TB 175 in the PDF

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 175 FAQ

When was the Takeuchi TB 175 manufactured?

The Takeuchi TB 175 was manufactured from 2005 to 2011.

How much does the Takeuchi TB 175 weigh?

The Takeuchi TB 175 weighs 7.2 tons.

What is the track width of the Takeuchi TB 175's undercarriage?

The Takeuchi TB 175 has a track width of 450 mm.

What are the excavation performance specifications of the Takeuchi TB 175?

The Takeuchi TB 175 has a dredging depth of 4.59 meters, a maximum horizontal reach of 5.255 meters, and features a monobloc boom.

What are the power ratings of the Takeuchi TB 175?

There are no power rating specifications available for the Takeuchi TB 175 in the provided data.

What is the bucket capacity of the Takeuchi TB 175 excavator?

The Takeuchi TB 175 excavator has a bucket capacity of 0.25 cubic meters.

How much is a Takeuchi TB 175 Crawler excavator (2005u20132011) worth?

The residual value of the Takeuchi TB 175 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
