TB290 Takeuchi excavator specs & Dimensions (2011 - 2017)

Model rating
7,00 / 10

Takeuchi TB290 is a crawler excavator manufactured from 2011 to 2017, with a weight of 8.4 tons. It features a track width of 450 …

Takeuchi TB290 is a crawler excavator manufactured from 2011 to 2017, with a weight of 8.4 tons. It features a track width of 450 mm, a transport length of 5.47 meters, a transport width of 2.2 meters, and a transport height of 2.56 meters. The machine has a tear-out force of 40 kN and comes equipped with air conditioning, a blade, a diesel particulate filter, and an overload alert system.

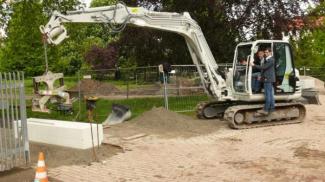

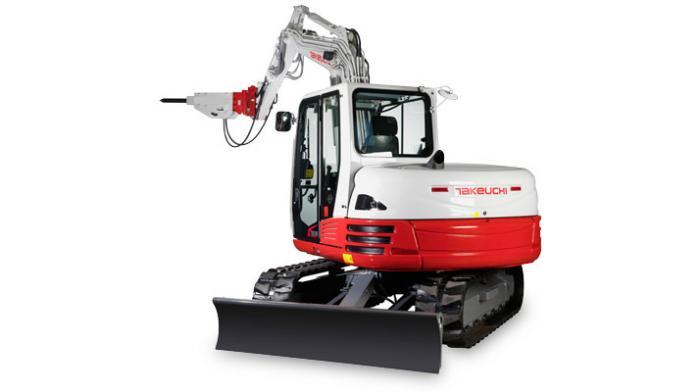

Crawler Excavators Takeuchi TB290
Crawler Excavators Takeuchi TB290
Crawler Excavators Takeuchi TB290
Crawler Excavators Takeuchi TB290
Crawler Excavators Takeuchi TB290
Crawler Excavators Takeuchi TB290

Technical specs - TB290 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.4 t
Transport length
5.47 m
Transport width
2.2 m
Transport height
2.56 m
Bucket capacity
0.25 m³
Track width
450 mm
Boom
MB
Max. Reach horizontal
7.275 m
Dredging depth
4.4 m
Tear-out force
40 kN
Model series
TB
Engine manuf.
Yanmar
Engine type
4TNV98CT
Engine power
51.6 kW
Dimension lxwxh
6.15x2.3x2.76 mm
Displacement
7.2 l

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB290 FAQ

When was the Takeuchi TB290 manufactured?

The Takeuchi TB290 was manufactured from 2011 to 2017.

How much does the Takeuchi TB290 weigh?

The Takeuchi TB290 weighs 8.4 tons.

What are the transport dimensions of the Takeuchi TB290 crawler excavator?

The Takeuchi TB290 has a transport length of 5.47 meters, a transport width of 2.2 meters, and a transport height of 2.56 meters.

What is the track width of the Takeuchi TB290's undercarriage?

The Takeuchi TB290 has a track width of 450 mm.

What are the excavation performance specifications of the Takeuchi TB290 crawler excavator?

The Takeuchi TB290 crawler excavator has a dredging depth of 4.4 meters, a maximum horizontal reach of 7.275 meters, and features a monobloc boom.

What is the power rating of the Takeuchi TB290?

The source data does not provide a power rating for the Takeuchi TB290.

What is the bucket capacity of the Takeuchi TB290 crawler excavator?

The bucket capacity of the Takeuchi TB290 is 0.25 cubic meters.

How much is a Takeuchi TB290 Crawler excavator (2011u20132017) worth?

The residual value of the Takeuchi TB290 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
