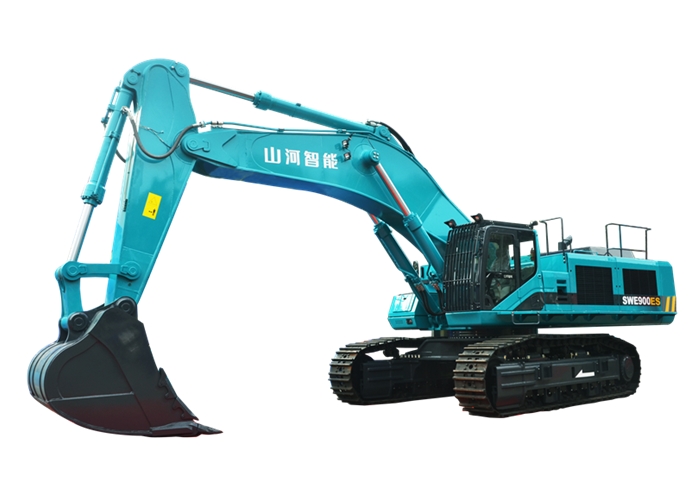

SWE900ES Sunward excavator specs & Dimensions (2020 - 2025)

Sunward SWE900ES is a Crawler Excavator manufactured since 2020, with a weight of 90.5 tons. It features a track width of 650 mm, …

Sunward SWE900ES is a Crawler Excavator manufactured since 2020, with a weight of 90.5 tons. It features a track width of 650 mm, a transport length of 13.89 meters, a transport width of 3.55 meters, and a transport height of 4.98 meters. The excavator has a tear-out force of 495 kN, a dredging depth of 7.27 meters, and a maximum horizontal reach of 12.06 meters. The bucket width is 1.92 meters, and the bucket capacity is 4.5 cubic meters.

Crawler Excavators Sunward SWE900ES

Technical specs - SWE900ES Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
90.5 t
Transport length
13.89 m
Transport width
3.55 m
Transport height
4.98 m
Bucket capacity
4.5 m³
Track width
650 mm
Max. Reach horizontal
12.06 m
Dredging depth
7.27 m
Tear-out force
495 kN
Bucket width
1.92 m
Model series
SWE
Engine manuf.
Cummins
Engine type
QSX15
Engine power
418 kW
Displacement
15 l
Revolutions at max torque
1400 rpm
Max. torque
2542 Nm
No. of cylinders
6
Cylinder bore x stroke
137x169 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Sunward SWE900ES FAQ

When was the Sunward SWE900ES manufactured?

The Sunward SWE900ES was first produced in 2020.

How much does the Sunward SWE900ES weigh?

The Sunward SWE900ES weighs 90.5 tons.

What are the transport dimensions of the Sunward SWE900ES crawler excavator?

The Sunward SWE900ES has a transport length of 13.89 meters, a transport width of 3.55 meters, and a transport height of 4.98 meters.

What is the track width of the Sunward SWE900ES crawler excavator?

The Sunward SWE900ES crawler excavator has a track width of 650 mm.

What are the excavation performance specifications of the Sunward SWE900ES?

The Sunward SWE900ES has a dredging depth of 7.27 meters and a maximum horizontal reach of 12.06 meters.

What is the tear-out force of the Sunward SWE900ES?

The Sunward SWE900ES has a tear-out force of 495 kN.

What are the specifications of the primary work tool bucket on the Sunward SWE900ES?

The primary work tool bucket of the Sunward SWE900ES has a capacity of 4.5 cubic meters and a width of 1.92 meters.

How much is a Sunward SWE900ES Crawler excavator (2020u20132025) worth?

The residual value of the Sunward SWE900ES depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
