SWE235E-3 Sunward excavator specs & Dimensions (2020 - 2025)

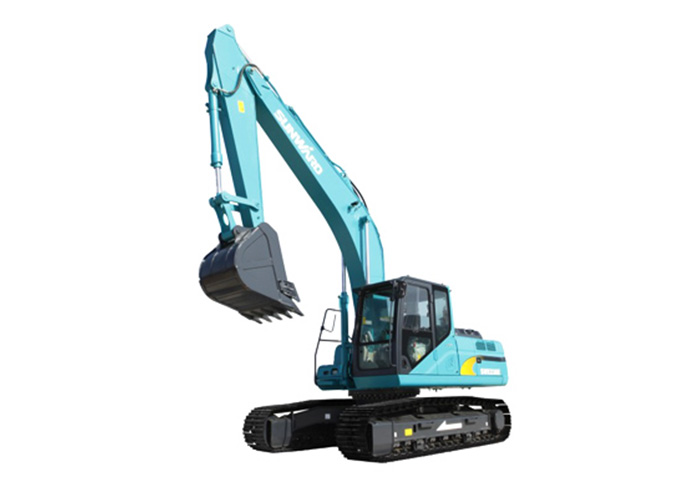

Sunward SWE235E-3 is a Crawler Excavator manufactured since 2020. It has a weight of 22.6 tons and a track width of 600 mm. The tr…

Sunward SWE235E-3 is a Crawler Excavator manufactured since 2020. It has a weight of 22.6 tons and a track width of 600 mm. The transport dimensions are 9.52 meters in length, 2.99 meters in width, and 3.13 meters in height. The excavator features a tear-out force of 155 kN, a dredging depth of 6.69 meters, and a maximum horizontal reach of 9.74 meters. The bucket width is 1.17 meters with a capacity of 1.1 cubic meters.

Crawler Excavators Sunward SWE235E-3

Technical specs - SWE235E-3 Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.6 t
Transport length
9.52 m
Transport width
2.99 m
Transport height
3.13 m
Bucket capacity
1.1 m³
Track width
600 mm
Max. Reach horizontal
9.74 m
Dredging depth
6.69 m
Tear-out force
155 kN
Bucket width
1.17 m
Model series
SWE
Engine manuf.
Cummins
Engine type
QSB7
Engine power
140 kW
Displacement
6.7 l
Revolutions at max torque
1200 rpm
Max. torque
800 Nm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sunward SWE235E-3 FAQ

When was the Sunward SWE235E-3 manufactured?

The Sunward SWE235E-3 was first produced in 2020.

How much does the Sunward SWE235E-3 weigh?

The Sunward SWE235E-3 weighs 22.6 tons.

What are the transport dimensions of the Sunward SWE235E-3 crawler excavator?

The Sunward SWE235E-3 has a transport length of 9.52 meters, a transport width of 2.99 meters, and a transport height of 3.13 meters.

What is the track width of the Sunward SWE235E-3 crawler excavator?

The track width of the Sunward SWE235E-3 crawler excavator is 600 mm.

What is the excavation performance of the Sunward SWE235E-3?

The Sunward SWE235E-3 has a dredging depth of 6.69 meters and a maximum horizontal reach of 9.74 meters.

What is the tear-out force of the Sunward SWE235E-3?

The Sunward SWE235E-3 has a tear-out force of 155 kN.

What are the specifications of the primary work tool on the Sunward SWE235E-3?

The primary work tool of the Sunward SWE235E-3 has a bucket capacity of 1.1 cubic meters and a bucket width of 1.17 meters.
