SWE215F-5A Sunward excavator specs & Dimensions (2023 - 2026)

Weight: 21.8t – Transport length: 9.57m – Transport width: 2.99m – Transport height: 3.15m – Bucket capacity: 0.8m³ – Bucket capac…

Weight: 21.8t – Transport length: 9.57m – Transport width: 2.99m – Transport height: 3.15m – Bucket capacity: 0.8m³ – Bucket capacity min.: 0.8m³

Check out detailed specifications, information and technical data for Sunward SWE215F-5A excavator manufactured between 2023 - 2026. Get more in-depth insight with Sunward SWE215F-5A digger specifications. See information, like: Weight: 21.8t – Transport length: 9.57m – Transport width: 2.99m – Transport height: 3.15m – Bucket capacity: 0.8m³ – Bucket capacity min.: 0.8m³ and more.

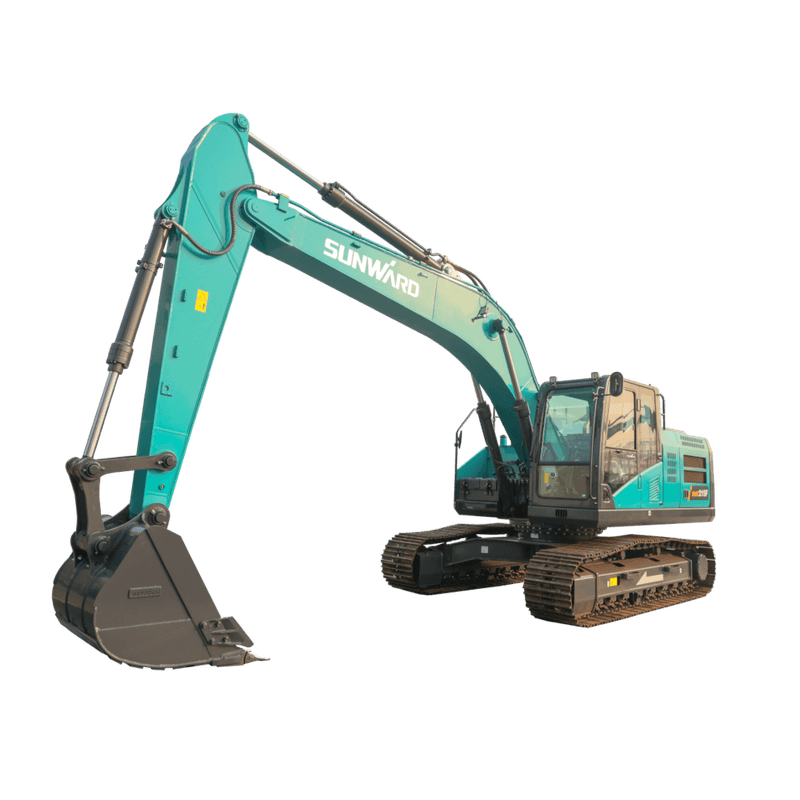

Crawler Excavators Sunward SWE215F-5A

Visit Sunward live at

Technical specs - SWE215F-5A Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.8 t
Transport length
9.57 m
Transport width
2.99 m
Transport height
3.15 m
Bucket capacity
0.8 m³
Bucket capacity min.
0.8 m³
Bucket capacity max.
1.1 m³
Track width
600 mm
Max. Reach horizontal
9.98 m
Dredging depth
6.75 m
Model series
SWE
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
129 kW
Displacement
6.7 l
Revolutions at max torque
2200 rpm
Max. torque
881/1300 Nm
Emission level
Euro V / US IV

More technical details, like: undercarriage, boom, tear-out force, bucket width, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
