SWE215F Sunward excavator specs & Dimensions (2026 - 2026)

Weight: 21.8t – Transport length: 9.56m – Transport width: 2.8m – Transport height: 3.15m – Bucket capacity: 1m³ – Track width: 60…

Weight: 21.8t – Transport length: 9.56m – Transport width: 2.8m – Transport height: 3.15m – Bucket capacity: 1m³ – Track width: 600mm

Check out detailed specifications, information and technical data for Sunward SWE215F excavator manufactured between 2026 - 2026. Get more in-depth insight with Sunward SWE215F digger specifications. See information, like: Weight: 21.8t – Transport length: 9.56m – Transport width: 2.8m – Transport height: 3.15m – Bucket capacity: 1m³ – Track width: 600mm and more.

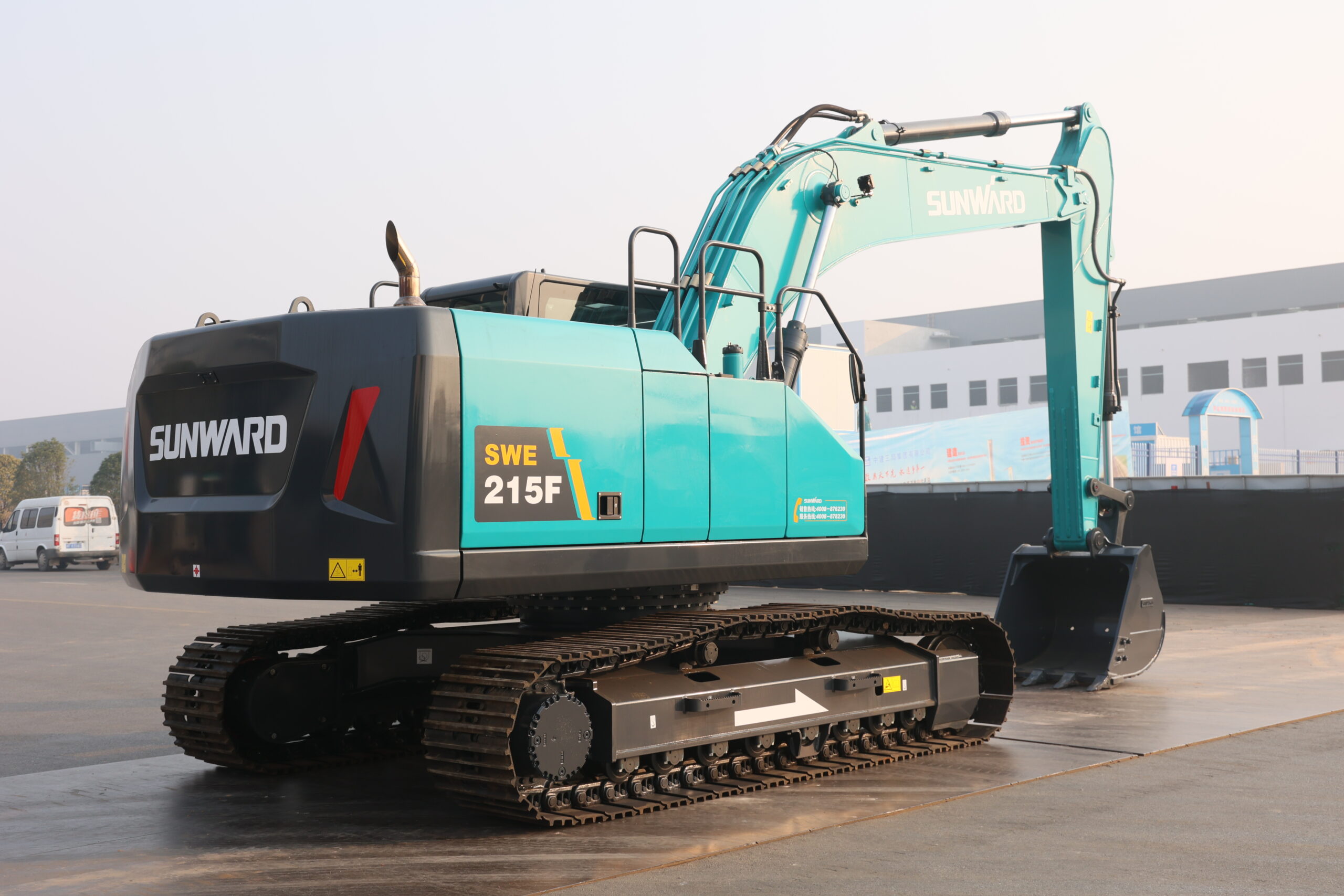

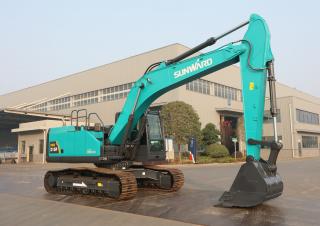

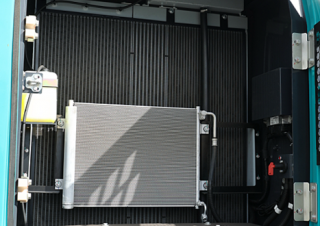

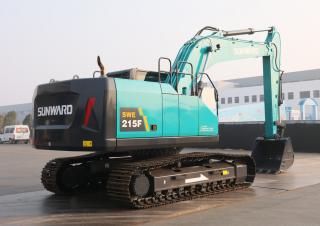

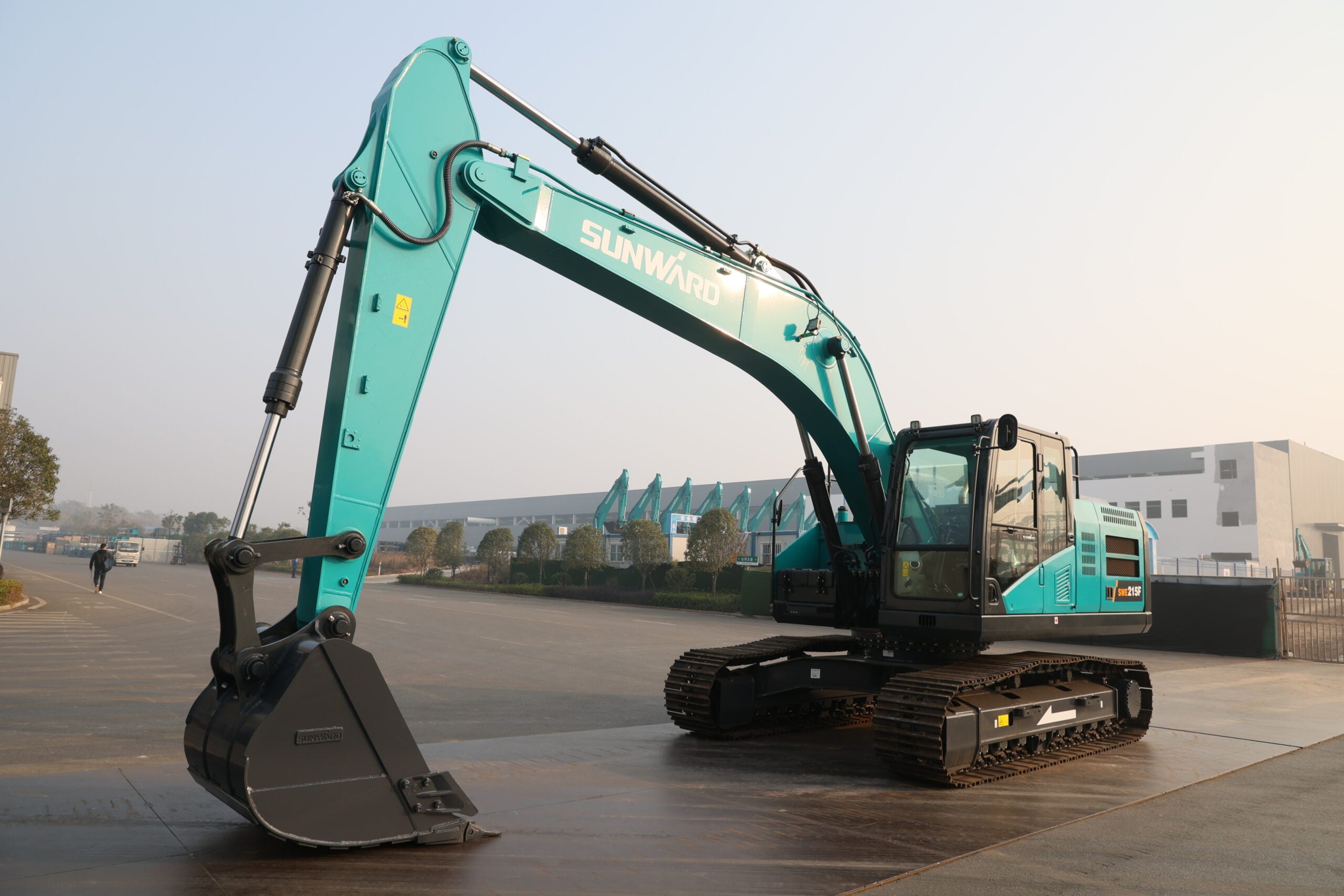

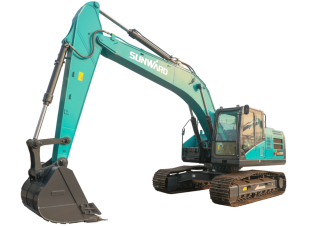

Crawler Excavators Sunward SWE215F
Crawler Excavators Sunward SWE215F
Crawler Excavators Sunward SWE215F
Crawler Excavators Sunward SWE215F
Crawler Excavators Sunward SWE215F
Crawler Excavators Sunward SWE215F
Crawler Excavators Sunward SWE215F
Crawler Excavators Sunward SWE215F
Crawler Excavators Sunward SWE215F
Crawler Excavators Sunward SWE215F

Visit Sunward live at

Technical specs - SWE215F Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.8 t
Transport length
9.56 m
Transport width
2.8 m
Transport height
3.15 m
Bucket capacity
1 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.915 m
Dredging depth
6.635 m
Tear-out force
155 kN
Model series
SWE
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
129 kW
Displacement
6.7 l
Revolutions at max torque
2200 rpm
Max. torque
881/1300 Nm
Emission level
Euro V / US IV

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
