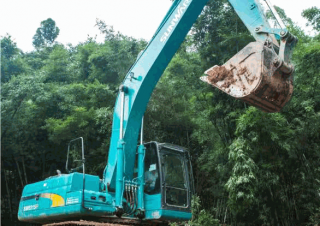

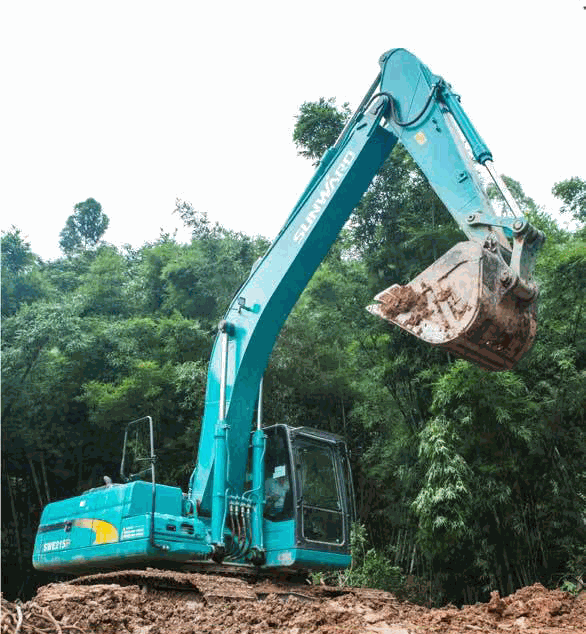

SWE215F Sunward SWE215F excavator specs & Dimensions (2020 - 2026)

Sunward SWE215F is a crawler excavator manufactured since 2020, with a weight of 21.8 tons. It features a track width of 600 mm, a…

Sunward SWE215F is a crawler excavator manufactured since 2020, with a weight of 21.8 tons. It features a track width of 600 mm, a transport length of 9.57 meters, a transport width of 2.8 meters, and a transport height of 2.95 meters. The machine has a tear-out force of 155 kN, a dredging depth of 6.75 meters, and a maximum horizontal reach of 9.94 meters.

Crawler Excavators Sunward SWE215F

Technical specs - SWE215F Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.8 t
Transport length
9.57 m
Transport width
2.8 m
Transport height
2.95 m
Track width
600 mm
Max. Reach horizontal
9.94 m
Dredging depth
6.75 m
Tear-out force
155 kN
Model series
SWE
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
129 kW
Displacement
6.7 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sunward SWE215F FAQ

When was the Sunward SWE215F manufactured?

The Sunward SWE215F was first produced in 2020.

How much does the Sunward SWE215F weigh?

The Sunward SWE215F weighs 21.8 tons.

What are the transport dimensions of the Sunward SWE215F crawler excavator?

The Sunward SWE215F crawler excavator has a transport length of 9.57 meters, a transport width of 2.8 meters, and a transport height of 2.95 meters.

What is the track width of the Sunward SWE215F's undercarriage?

The Sunward SWE215F has a track width of 600 mm.

What are the excavation performance specifications of the Sunward SWE215F?

The Sunward SWE215F has a dredging depth of 6.75 meters and a maximum horizontal reach of 9.94 meters.

What is the tear-out force of the Sunward SWE215F?

The Sunward SWE215F has a tear-out force of 155 kN.

How much is a Sunward SWE215F Crawler excavator (2020u20132025) worth?

The residual value of the Sunward SWE215F depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
