SWE210 Sunward excavator specs & Dimensions (2020 - 2025)

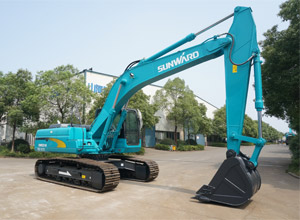

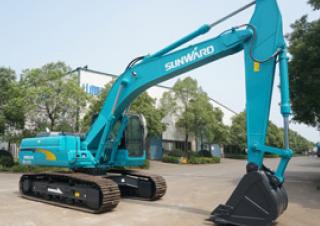

Sunward SWE210 is a crawler excavator manufactured since 2020. It has a weight of 21.3 tons and a track width of 600 mm. The trans…

Sunward SWE210 is a crawler excavator manufactured since 2020. It has a weight of 21.3 tons and a track width of 600 mm. The transport dimensions are 9.59 meters in length, 2.8 meters in width, and 2.97 meters in height. The machine offers a tear-out force of 154 kN, a dredging depth of 6.69 meters, and a maximum horizontal reach of 9.79 meters. The bucket capacity is 0.95 cubic meters.

Crawler Excavators Sunward SWE210

Visit Sunward live at

Technical specs - SWE210 Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.3 t
Transport length
9.59 m
Transport width
2.8 m
Transport height
2.97 m
Bucket capacity
0.95 m³
Track width
600 mm
Max. Reach horizontal
9.79 m
Dredging depth
6.69 m
Tear-out force
154 kN
Model series
SWE
Engine manuf.
Isuzu
Engine type
N/A
Engine power
110 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sunward SWE210 FAQ

When was the Sunward SWE210 manufactured?

The Sunward SWE210 was first produced in 2020.

How much does the Sunward SWE210 weigh?

The Sunward SWE210 weighs 21.3 tons.

What are the transport dimensions of the Sunward SWE210 crawler excavator?

The Sunward SWE210 has a transport length of 9.59 meters, a transport width of 2.8 meters, and a transport height of 2.97 meters.

What is the track width of the Sunward SWE210 crawler excavator?

The Sunward SWE210 crawler excavator has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the Sunward SWE210?

The Sunward SWE210 has a dredging depth of 6.69 meters and a maximum horizontal reach of 9.79 meters.

What are the power ratings of the Sunward SWE210?

There are no power rating specifications available for the Sunward SWE210 in the provided data.

What is the bucket capacity of the Sunward SWE210 excavator?

The Sunward SWE210 excavator has a bucket capacity of 0.95 cubic meters.
