SWE 125 Sunward excavator specs & Dimensions (2008 - 2020)

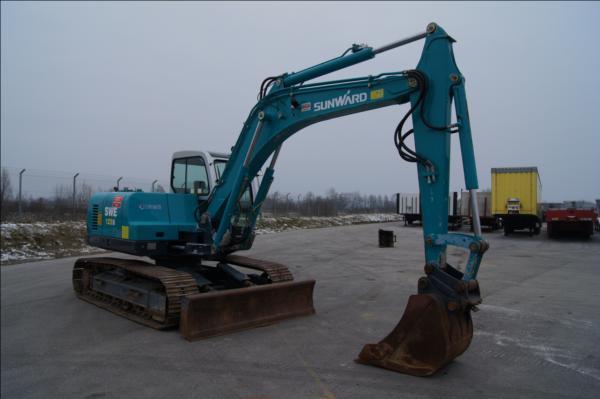

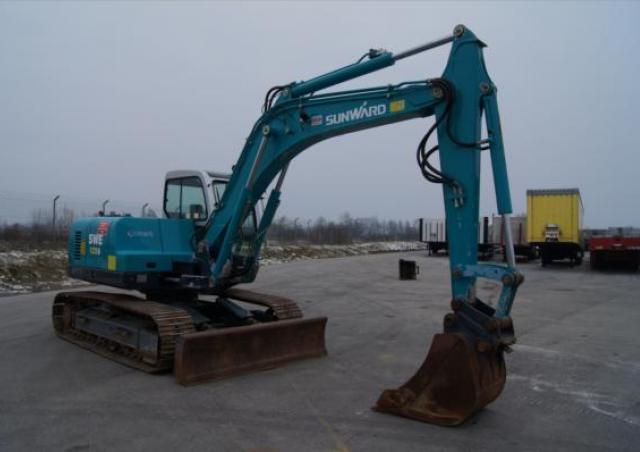

Sunward SWE 125 is a crawler excavator manufactured from 2008 to 2020, with a weight of 12.1 tons. It has a transport length of 7.…

Sunward SWE 125 is a crawler excavator manufactured from 2008 to 2020, with a weight of 12.1 tons. It has a transport length of 7.23 meters, a transport width of 2.421 meters, and a transport height of 2.89 meters.

Crawler Excavators Sunward SWE 125

Technical specs - SWE 125 Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.1 t
Transport length
7.23 m
Transport width
2.421 m
Transport height
2.89 m
Bucket capacity
0.42 m³
Boom
MB
Max. Reach horizontal
7.79 m
Dredging depth
2.89 m
Tear-out force
72.2 kN
Model series
SWE
Engine manuf.
Perkins
Engine type
k.A.
Engine power
74.5 kW
Displacement
4.4 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, track width, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Sunward SWE 125 FAQ

When was the Sunward SWE 125 manufactured?

The Sunward SWE 125 was manufactured from 2008 to 2020.

How much does the Sunward SWE 125 weigh?

The Sunward SWE 125 weighs 12.1 tons.

What are the transport dimensions of the Sunward SWE 125?

The Sunward SWE 125 has a transport length of 7.23 meters, a transport width of 2.42 meters, and a transport height of 2.89 meters.

What are the excavation performance specifications of the Sunward SWE 125?

The Sunward SWE 125 has a dredging depth of 2.89 meters, a maximum horizontal reach of 7.79 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Sunward SWE 125?

The Sunward SWE 125 has a tear-out force of 72.2 kN. No power rating data is provided for this model.

What is the bucket capacity of the Sunward SWE 125?

The Sunward SWE 125 has a bucket capacity of 0.42 cubic meters.

How much is a Sunward SWE 125 Crawler excavator (2008u20132020) worth?

The residual value of the Sunward SWE 125 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
