SH225X-3B Sumitomo excavator specs & Dimensions (2017 - 2026)

Sumitomo SH225X-3B is a Crawler Excavator manufactured since 2017, with a weight of 24 tons. It features a track width of 600 mm, …

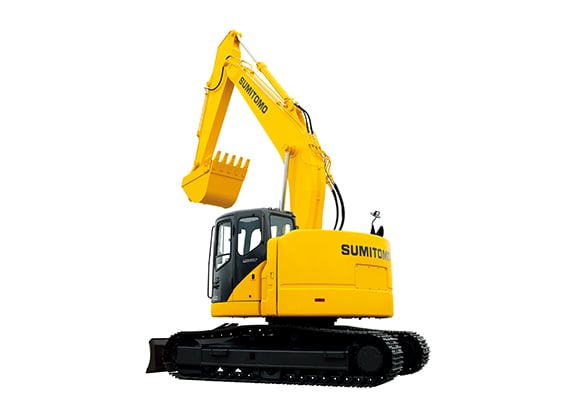

Sumitomo SH225X-3B is a Crawler Excavator manufactured since 2017, with a weight of 24 tons. It features a track width of 600 mm, a transport length of 9.33 meters, a transport width of 2.8 meters, and a transport height of 3.42 meters. The excavator has a tear-out force of 130 kN, a dredging depth of 6.7 meters, and a maximum horizontal reach of 9.91 meters. It comes with a bucket width of 1.13 meters and a bucket capacity of 0.8 cubic meters. The machine is equipped with air conditioning.

Crawler Excavators Sumitomo SH225X-3B

Technical specs - SH225X-3B Sumitomo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24 t
Transport length
9.33 m
Transport width
2.8 m
Transport height
3.42 m
Bucket capacity
0.8 m³
Track width
600 mm
Max. Reach horizontal
9.91 m
Dredging depth
6.7 m
Tear-out force
130 kN
Bucket width
1.13 m
Model series
SH
Engine manuf.
Isuzu
Engine type
AI-4HK1X
Engine power
114.4 kW
Displacement
5.193 l

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sumitomo SH225X-3B FAQ

When was the Sumitomo SH225X-3B manufactured?

The Sumitomo SH225X-3B was first produced in 2017.

How much does the Sumitomo SH225X-3B weigh?

The Sumitomo SH225X-3B weighs 24 tons.

What are the transport dimensions of the Sumitomo SH225X-3B?

The Sumitomo SH225X-3B has a transport length of 9.33 meters, a transport width of 2.8 meters, and a transport height of 3.42 meters.

What is the track width of the Sumitomo SH225X-3B's undercarriage?

The Sumitomo SH225X-3B has a track width of 600 mm.

What are the excavation performance specifications of the Sumitomo SH225X-3B?

The Sumitomo SH225X-3B has a dredging depth of 6.7 meters and a maximum horizontal reach of 9.91 meters.

What is the tear-out force of the Sumitomo SH225X-3B?

The Sumitomo SH225X-3B has a tear-out force of 130 kN.

What are the bucket specifications of the Sumitomo SH225X-3B crawler excavator?

The Sumitomo SH225X-3B has a bucket capacity of 0.8 cubic meters and a bucket width of 1.13 meters.

How much is a Sumitomo SH225X-3B Crawler excavator (2017u20132025) worth?

The residual value of the Sumitomo SH225X-3B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Sumitomo SH225X-3B overview

Engine

Maintenance

Diverse innovations designed to reduce running costs and make maintenance easy. In terms of both cost and labor, you will really come to appreciate its efficiency the longer you use it.


Upper Structure

Minimum Swing Radius

In addition to boasting top-class compact rotational capability for cramped areas, outstanding stability, and powerful digging and drive strength have been realized. On various kinds of work-sites it can always be trusted to perform and maneuver exactly as the operator intends.


Improvements to precision maneuverability

Precision maneuverability that functions exactly as the operator intends has been made possible through the employment of a new type of rotational bearing.


Employment of speed assisted mechanics

Through employing an oil return system in the arm and boom, speed assisted operations for digging, as well as fuel consumption, have been improved.


Cab

Operator Comfort and Safety

How safely, and in what level of comfort can the driver carry out daily operations? We have extended every possible care and attention to ensure that both safety and comfort are provided.
