SH210F-5 MACAN Sumitomo excavator specs & Dimensions (2017 - 2026)

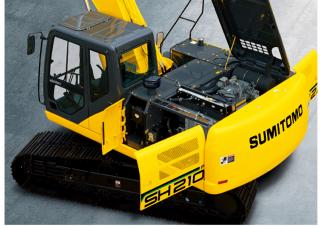

Sumitomo SH210F-5 MACAN is a crawler excavator manufactured since 2017. It has a weight of 21.4 tons and a track width of 800 mm. …

Sumitomo SH210F-5 MACAN is a crawler excavator manufactured since 2017. It has a weight of 21.4 tons and a track width of 800 mm. The transport dimensions are 9.4 meters in length, 3 meters in width, and 2.94 meters in height. The machine features a tear-out force of 142 kN, a dredging depth of 6.65 meters, and a maximum horizontal reach of 9.9 meters. The bucket width is 1.23 meters with a capacity of 0.9 cubic meters.

Crawler Excavators Sumitomo SH210F-5 MACAN

Technical specs - SH210F-5 MACAN Sumitomo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.4 t
Transport length
9.4 m
Transport width
3 m
Transport height
2.94 m
Bucket capacity
0.9 m³
Track width
800 mm
Max. Reach horizontal
9.9 m
Dredging depth
6.65 m
Tear-out force
142 kN
Bucket width
1.23 m
Model series
SH
Engine manuf.
Isuzu
Engine type
4HK1X
Engine power
117.3 kW
Displacement
5.193 l

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sumitomo SH210F-5 MACAN FAQ

When was the Sumitomo SH210F-5 MACAN manufactured?

The Sumitomo SH210F-5 MACAN was first produced in 2017.

How much does the Sumitomo SH210F-5 MACAN weigh?

The Sumitomo SH210F-5 MACAN weighs 21.4 tons.

What are the transport dimensions of the Sumitomo SH210F-5 MACAN crawler excavator?

The Sumitomo SH210F-5 MACAN has a transport length of 9.4 meters, a transport width of 3 meters, and a transport height of 2.94 meters.

What is the track width of the Sumitomo SH210F-5 MACAN's undercarriage?

The Sumitomo SH210F-5 MACAN has a track width of 800 mm.

What is the excavation performance of the Sumitomo SH210F-5 MACAN?

The Sumitomo SH210F-5 MACAN has a dredging depth of 6.65 meters and a maximum horizontal reach of 9.9 meters.

What is the power rating of the Sumitomo SH210F-5 MACAN?

The power rating of the Sumitomo SH210F-5 MACAN is not provided in the available data.

What are the bucket specifications of the Sumitomo SH210F-5 MACAN crawler excavator?

The Sumitomo SH210F-5 MACAN crawler excavator has a bucket capacity of 0.9 cubic meters and a bucket width of 1.23 meters.

How much is a Sumitomo SH210F-5 MACAN Crawler excavator (2017u20132025) worth?

The residual value of the Sumitomo SH210F-5 MACAN depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your Sumitomo SH210F-5 MACAN from experts

Machine inspection

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by: Mevas — The Heavy Equipment Inspectors

Buy & Rent

Compare Sumitomo SH210F-5 MACAN with similar Crawler Excavators

Sumitomo SH210F-5 MACAN

Sumitomo SH210F-5 MACAN

Weight:
21.4 t
Transport length:
9.4 m
Transport width:
3 m
Transport height:
2.94 m
Liebherr R 926

Liebherr R 926

Weight:
25.3 t
Transport length:
9.4 m
Transport width:
2.38 m
Transport height:
3.07 m
Zoomlion ZE210E

Zoomlion ZE210E

Weight:
21.3 t
Transport length:
9.57 m
Transport width:
2.8 m
Transport height:
3.01 m
